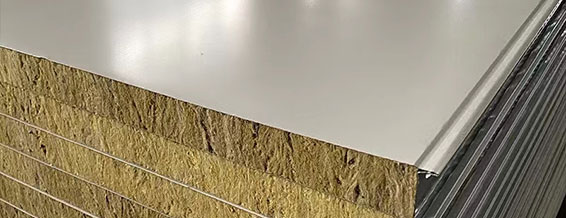

Introduce of Rockwool Purification Panel of Chuanya Building Material

‌Rockwool purification panel is a composite material that combines the characteristics of rockwool and purification board. It is mainly used in places that require heat preservation, fire isolation and dust prevention. ‌Rockwool purification board uses rockwool as the core material, and the outer layer is covered with color-coated plate, stainless steel or aluminum alloy and other materials. It has dust-proof, anti-static and antibacterial effects. This material is widely used in clean engineering fields that have strict requirements on indoor environment, such as electronics, pharmaceuticals, food, biology, aerospace, precision instrument manufacturing and scientific research, etc.
  • Rockwool Purification Panel
  • Rockwool Purification Panel
  • Rockwool Purification Panel
  • Rockwool Purification Panel
  • Rockwool Purification Panel

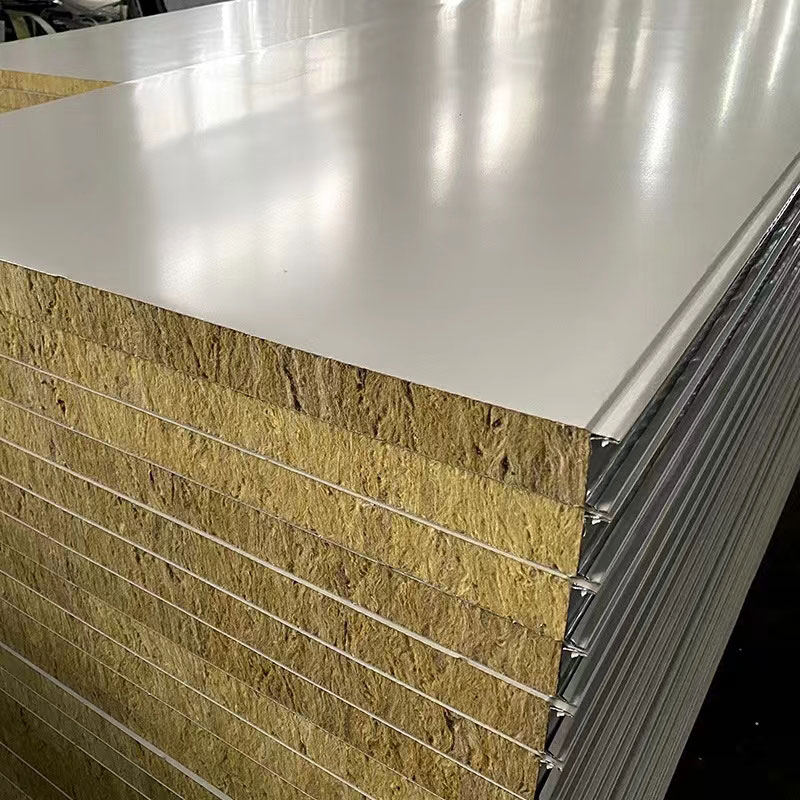

Rockwool Purification Panel

Rock wool purification board is a kind of mechanism purification board, which is made of color-coated board, stainless steel and other materials as the surface material, and rock wool core material is filled in the middle. It is widely used in purification engineering fields with strict requirements on indoor environment, such as electronics, pharmaceuticals, food, biology, aerospace, instrument manufacturing and scientific research. Rock wool purification board has unique dustproof, antistatic and antibacterial effects, which can effectively filter harmful gases and particulate matter in the air, provide good insulation for buildings, and provide a clean and healthy indoor environment. In addition, it also has sound insulation, heat insulation, thermal insulation, earthquake resistance, fire prevention and other properties, and belongs to Class A fireproof and non-combustible clean board. The service life of rock wool board is usually the same as the service life of the building. However, it should be noted that although both steel plate and rock wool itself are non-combustible, under extremely high temperature, rock wool may shrink and soften, causing local steel plate to lose insulation and burn in the steel plate. Therefore, when using rock wool purification board, special attention should be paid to its fire resistance and performance in high temperature environment. In general, rock wool purification board is a building material with rich functions and superior performance, which can meet the needs of various purification projects. For more information about rock wool purification boards, it is recommended to consult experts in related fields or refer to professional materials.

Square meter calculation

Shippment Reference,  20’ container from QINGDAO to DUBAI, UPDATE WEEKLY BY QINGDAO ***

SHIPPING LLC     * KG, * M², how long does it take to ship

40’ container from QINGDAO to DUBAI, UPDATE WEEKLY BY QINGDAO *** SHIPPING LLC

* KG, * M², how long does it take to ship

For more port freight rates, please get in touch with us + Container and product deconstruction diagrams, rulers, port-to-port maps

View Item Data

Wall panel thickness

50、75、100、150、200

Recommended maximum length

6000mm

Maximum length of ceiling panel

3000mm

Thermal insulation performance

0.54kcal/m²/h/℃

Sound insulation performance

30dB

Fire resistance limit

0.5h

Core material density

100kg/m³-150kg/m³

Panel weight

50mm×1180mm×3000mm Chinese style average weight 18.1 kg/m² (120Kg rock wool)

Suitable panel type

Tongue and groove board Chinese character concave and convex

Water repellency

≥98%

Acidity coefficient

≥1.8

Thermal conductivity

≤0.048W/m.K

Fire rating

A1

Bending bearing capacity

1.1KN/m²

Color Reference

Details Displaying

Diagram View

Step 1: The head of the rock wool sandwich panel in contact with the ground is sealed with a C-shaped groove (30*99*30) for waterproofing.

Step 2: The part of the rock wool color steel sandwich panel that contacts the ground can be placed on a pre-built brick wall. A flashing board is installed on the brick wall to prevent water from entering the room;

Step 3: The steel structure exterior wall is first made of C-shaped steel (40*120*2.6) to find the plane. The C-shaped steel groove is laid horizontally with an upper and lower spacing (1000-1500mm); as shown below:

Step 4: 100mm color steel sandwich panels are vertically assembled with male and female ports for insertion, waterproof structure;

Step 5: Use self-tapping screws 125mm apart to evenly fix each piece where it contacts the C-shaped steel. The distance between the first screw on the edge of the plate and the edge is 191mm-195mm, and the distance between the second bolt and the first bolt is not less than 383mm (horizontally)

Step 6: After the overall wall installation is completed, the top of the board is waterproofed with edge wrapping to prevent rainwater from penetrating into the rock wool to avoid increasing weight and collapse of the rock wool after absorbing water. It is fixed with self-tapping screws or rivets. The screw spacing is about 500mm.
