Hangzhou Chuan Ya Building Materials Co., Ltd.

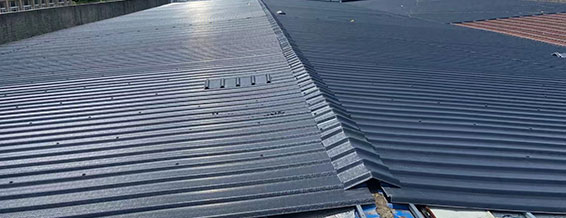

Chuanya UV PVC tile is a corrugated tile made of resin and UV layer

Since its cross section is consistent, it can be used for arched roofs. It has excellent acid and alkali resistance, load-bearing performance, high temperature resistance and flame retardant performance, so it is widely used in various factory roofs with large spans.
  • UV-PVC Tile
  • UV-PVC Tile
  • UV-PVC Tile
  • UV-PVC Tile
  • UV-PVC Tile
  • UV-PVC Tile
  • UV-PVC Tile
  • UV-PVC Tile

UV-PVC Tile

5-30 years of durability UV-PVC tiles are mainly made of Polyvinyl chloride (pvc) resin, anti-ultraviolet agent UV-P, antioxidants, and flame retardants as raw materials. Because its cross section is consistent, it can be used for arch roof use, it has acid and alkali resistance and load bearing performance, and high-temperature flame retardant performance, so it is widely used in all kinds of large span factory roofs, its model and lighting tile and color steel tile model benchmarking can also be made of wall and ceiling, hollow, composite material. Its width is mainly: 840,900,980,1050 mm, each width wave height and cross-section are different, suitable for different roofing scenes. The main colors are: white, blue, green, and gray. Thickness commonly used are 1.5mm, 2.0mm, 2.5mm, and 3.0mm, and length support is customized.

Square Meter Calculation

Shippment Reference, If 2.0MM Thickness, against 1000 Type High Six-wave, Proportion 2.1 Per Thickness & Per Meters
20’ container
Total  21.59T, 5,142.8 M, packed as two piles in one container, for reference only
40’ container,
Total  26.49T, 6,309.5 M, packed as two piles in one container, for reference only

from NINGBO to DUBAI, UPDATE WEEKLY BY NINGBO *** SHIPPING LLC

For more port freight rates, please get in touch with us + Container and product deconstruction diagrams, rulers, port-to-port maps


View Item Data

Model

84/ 900/ 980 Type Conventional, 1000 Type High Six-wave, 1130 Small/ Large Waveform, 920Trapezoidal, Hollow insulation & Etc.

Material

PVC resin/ Carbon powder/ Toughener/ Plasticizer/ ASA film/ CPE & etc

Thickness

1.5mm - 3.0mm, regular 2.0 mm/ 2.5 mm/ 3.0 mm (over 2,000 meters, customized available)

Overall width

1.13M/ 1.1M/ 1.2M/ 0.98M/ 0.78M

Effective width

1.05M/ 1.0MM/  0.9M/ 0.84M/ 0.98M/ 0.78M

Length

Usually cut to 5.7 M (customized available no length limit, against the max length of the 20` container or bulk packing reference)

Purlin distance

Vertical 3 M, Horizontal: 84 Type Usually Within 70 CM, 98/ 1130 Type Usually Within 100 CM, 930 High Wave Within 130 CM & Etc.

Proportion

1.75/ 2.1/ 2.2 /2.3 Kg/ MM/ M (Per MM Thickness & M Length)

 Color

Black/ Gray/ Red/ Blue/ White

Corrugated

Small Waveform/ Wavelet/ Six High Wave/ Regular/ Big Pit

Km/ Machine

1,500M/ one Machine per day


Color Reference

Details Displaying

Good Acid Alkali Resistance Chuanya UPVC Tiles Good Flame Retardancy Chuanya UPVC Tiles
Good Flame Retardancy Chuanya UPVC Tiles

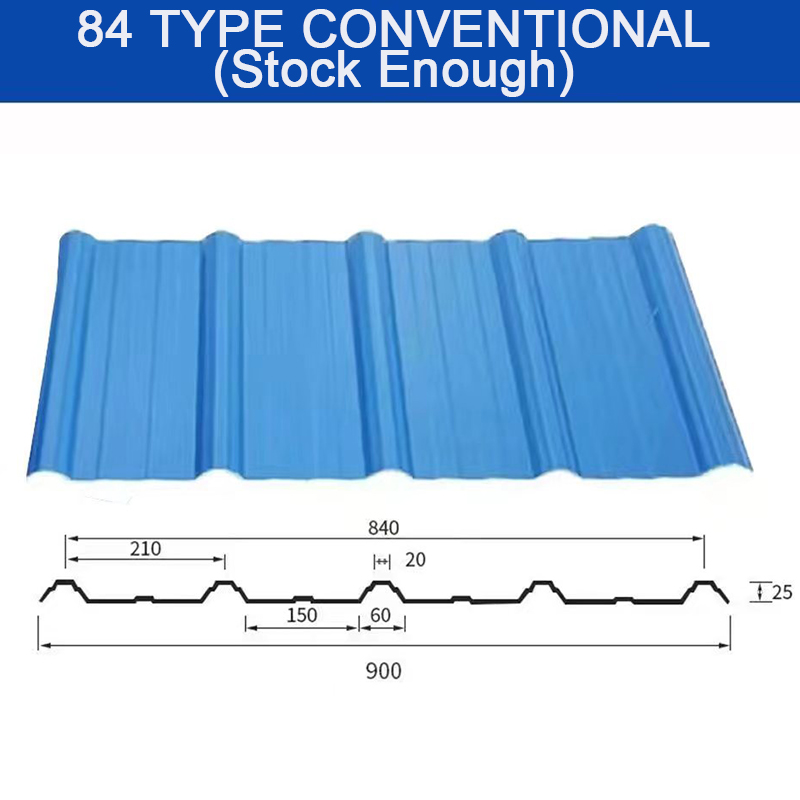

840 Type Conventional Chuanya UPVC Tiles

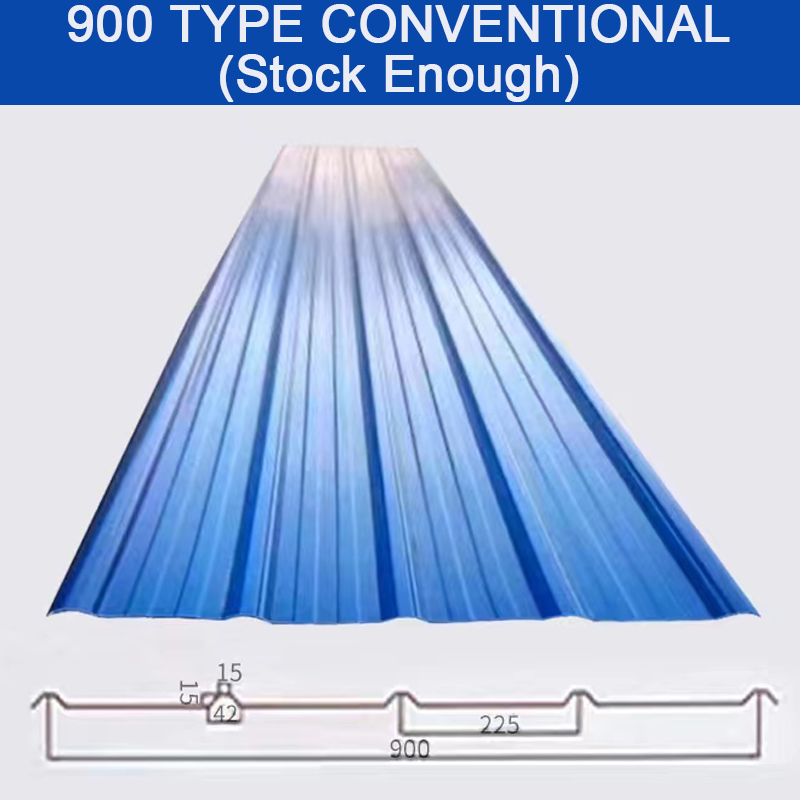

1130 Large Small Waveform Chuanya UPVC Tiles 900 Type Conventional Chuanya UPVC Tiles

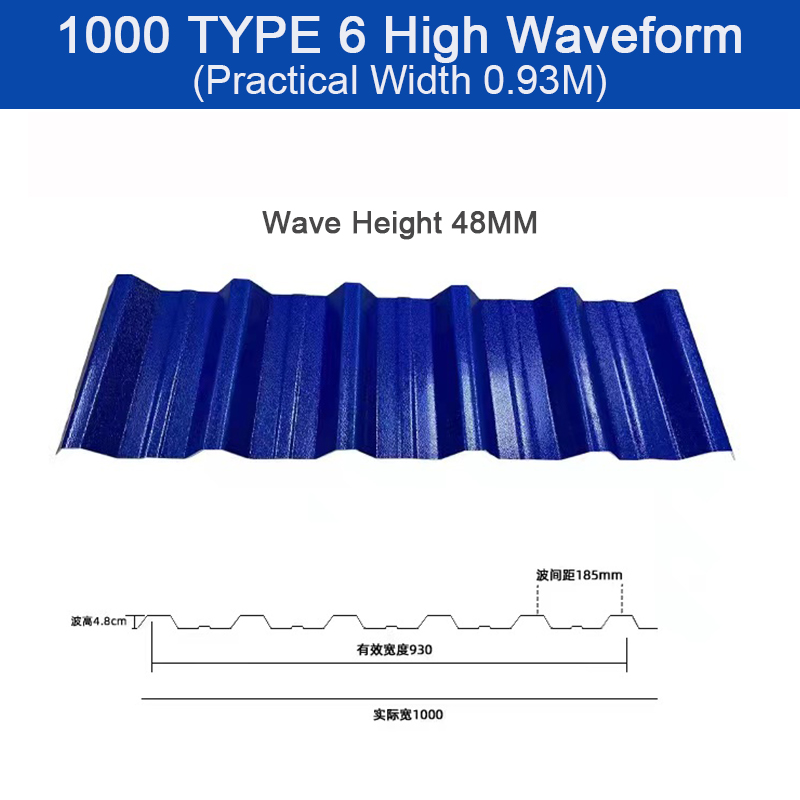

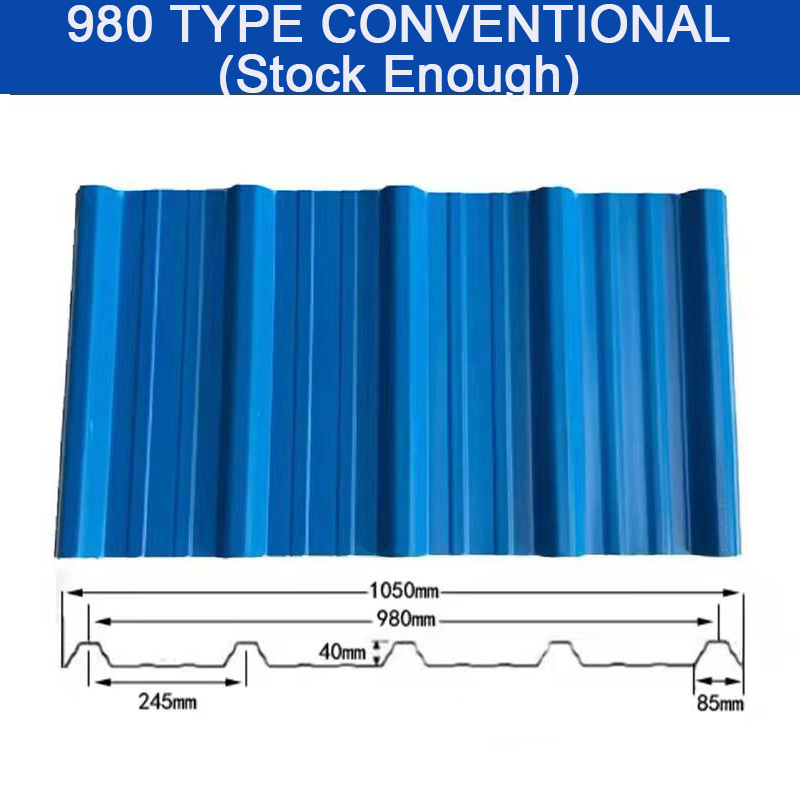

980 Type Conventional Chuanya UPVC Tiles 1000 Type Conventional Chuanya UPVC Tiles

More Corugated Type in catalog, click to check details

Diagram View

Chuanya UPVC Tiles used in factory building construction The diagram of Chuanya UPVC Tiles on roogtop

The UPVC Roof Tiles/ Sheets/ Panel usually do “Covering” on the old Roof Tiles

Top Ridge

Renovation and construction of  high-speed railway station rebuilt 1  Renovation and construction of  high-speed railway station rebuilt 2 The Renovation Project of the Industrial Park Shed Covering

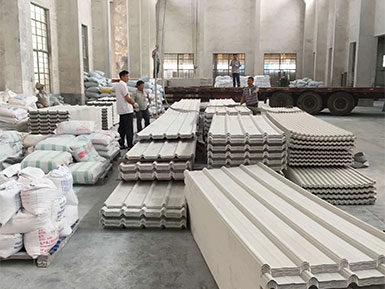

840 white 2 0mm stock in the warehouse

Chuanya UPVC Roof Sheets

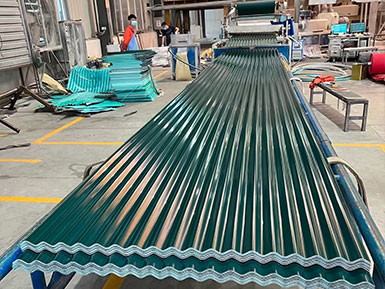

Customized Color Green and 3000 meters in

production Chuanya UPVC Roof Sheets

Shipping to Fence Trailer Chuanya UPVC Roof Sheets



  • Impaction Test by hammer
  • Impaction Test by tire
  • Resin roof tiles in pounding test
  • Resin roof tiles, test by crimping with pliers

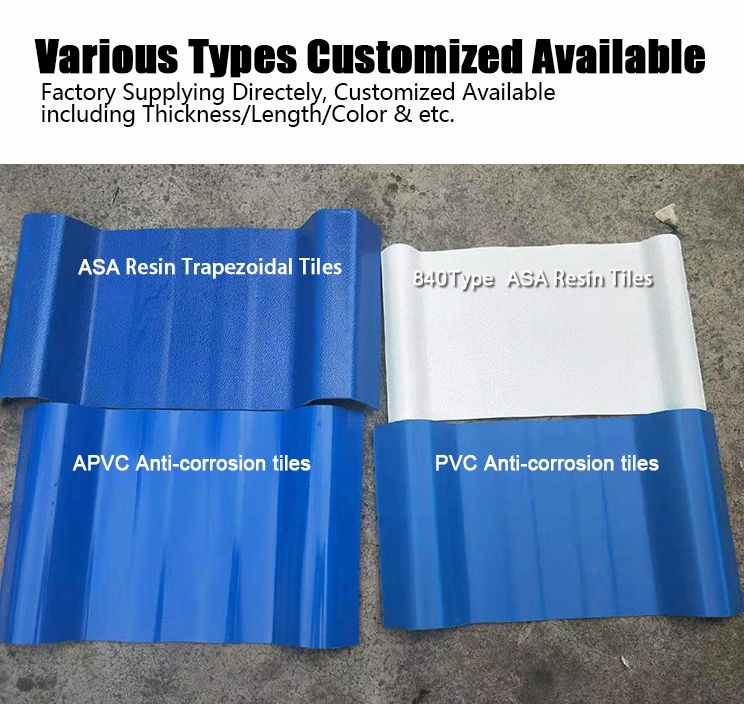

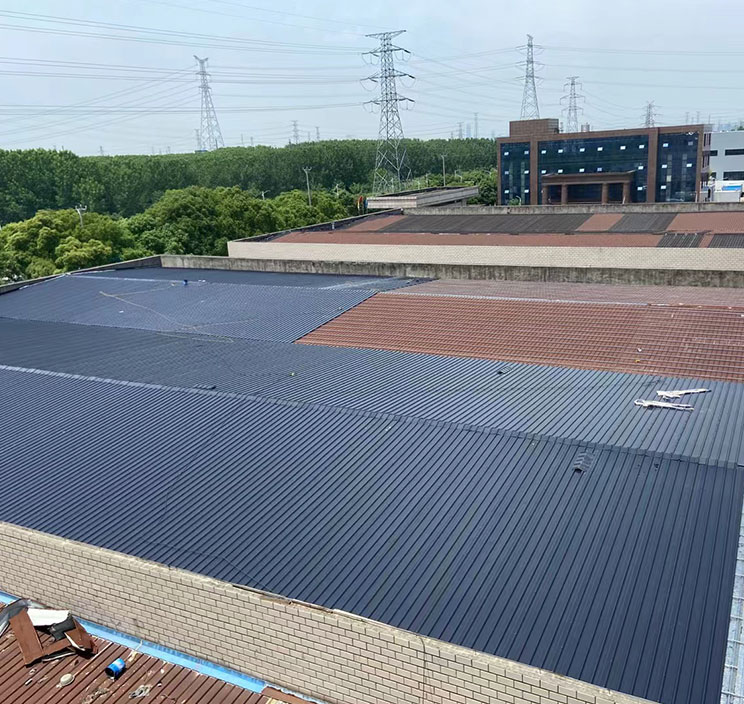

2 400 squre meter covering on old rooftop of the factory Chuanya UPVC Roof Sheets Customized Color Thickness and Length Chuanya UPVC Roof Sheets
