Hangzhou Chuan Ya Building Materials Co., Ltd.

Introduction of Chuanya Steel Color-coated Tiles

Durable life 5-20 years Color steel tile, also known as color steel corrugated tile, is a steel plate with color coating, which can be rolled and cold-bent into various corrugations. It is mainly suitable for industrial and civil buildings such as warehouses, large-span steel structure roofs, wall enclosures and partitions, etc. It has the characteristics of light texture, high strength, rich colors, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, and maintenance-free.
  • Color Steel Tile
  • Color Steel Tile
  • Color Steel Tile
  • Color Steel Tile
  • Color Steel Tile
  • Color Steel Tile
  • Color Steel Tile

Color Steel Tile

Color Steel Tiles, also known as colored corrugated tiles, are corrugated sheets made of colored coated steel plates rolled and cold-bent into various corrugated shapes.

It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls, and interior and exterior wall decoration of large-span steel structure houses.

It has the characteristics of lightweight, high strength, rich colors, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, long life, and maintenance-free.

It has been widely promoted and applied.

Square Meter Calculation

Shippment Reference

20’ container
Total ** G, ** M, packed as two piles in one container, for reference only
40’ container,
Total ** G, ** M, packed as two piles in one container, for reference only

from NINGBO to DUBAI, UPDATE WEEKLY BY NINGBO *** SHIPPING LLC

For more port freight rates, please get in touch with us + Container and product deconstruction diagrams, rulers, port-to-port maps



View Item Data


Model

950/ 920/ 900/ 840/ 825/ 820/ 780/ 760/ 750/ 475/ 430/ 420

Type

Corrugated/ Trapezoidal Small Wave/ Trapezoidal/ High Wave/ large Waveform/ Ceiling Panel/ Corner

Material

Galvanized Steel, Color Film

Thickness

0.326/ 0.376/ 0.426/ 0.476/ 0.2MM  Fence Panel

Item Size

200MM-620MM

Installation Size

Regular in 2.7KG per meter per thickness

Color

Green/ Grey/ Blue/ Red/ White

Item Weight

2.0-3.0KG/ PC


1. Causes and classification of corrugations

The corrugation of colored steel plates is mainly due to the influence of their stress conditions and production processes. During the production process, colored steel plates undergo multiple steps such as cold drawing, cold bending, and shearing, so their surface will show a certain degree of corrugation.

According to the shape and cause of the corrugation, color steel plates can be divided into the following three categories:
① The corrugation of the sheet material during the production process through bending, stretching, shearing, etc. ② The surface of the sheet material is embossed to form certain raised and recessed areas, thus showing a corrugated shape
③ The deformation of the sheet material is caused by external force

For more details click here...

Color Reference

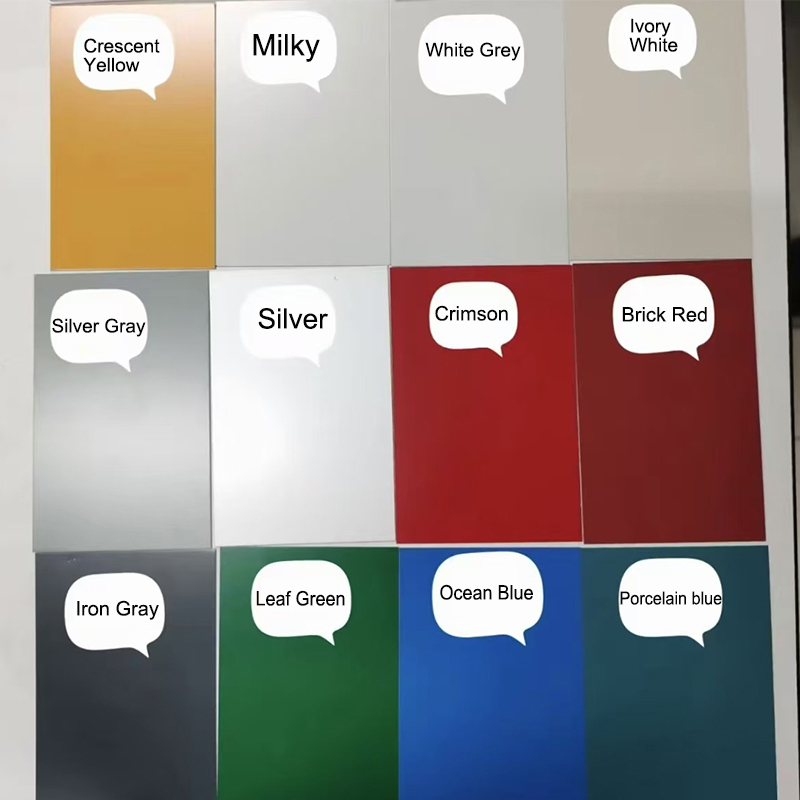

Color Steel Tile multiple color sand, CHuanya Roof Tile


Pre-installation project
Four-sided slope
①The blue dotted line and the red dotted line are the horizontal and vertical frames respectively.
②The distance a is preferably 50CM.
③The distance b is preferably 50-70CM.

Two-sided slope
①Select the material of the frame, both wooden structure and steel structure are suitable.
②The surface of the construction needs to be smooth.
③Specifications of frame materials: The specifications of wood are 45MM×45MM or more, and the specifications of steel are 40MM×40MM or more.

④The longitudinal spacing of the frame should be kept between 50CM and 70CM, and the horizontal spacing must be a multiple of 25CM, preferably not more than 50M, and use screws as tightly as possible and weld firmly.

Details Displaying

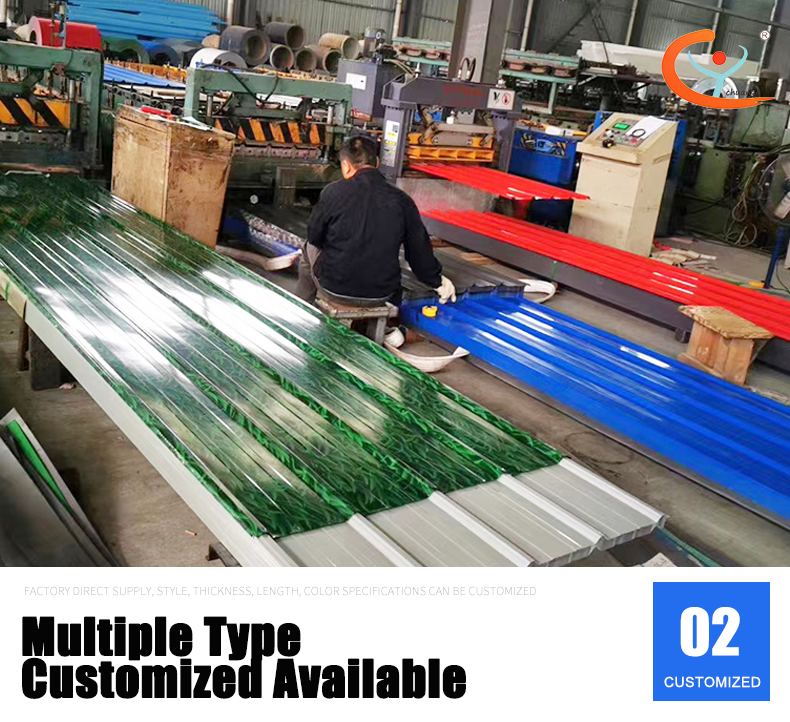

The Details of Color Steel Tiles, Chuanya Roof Tile  The Details of Color Steel Sheets, Chuanya Roof Tile

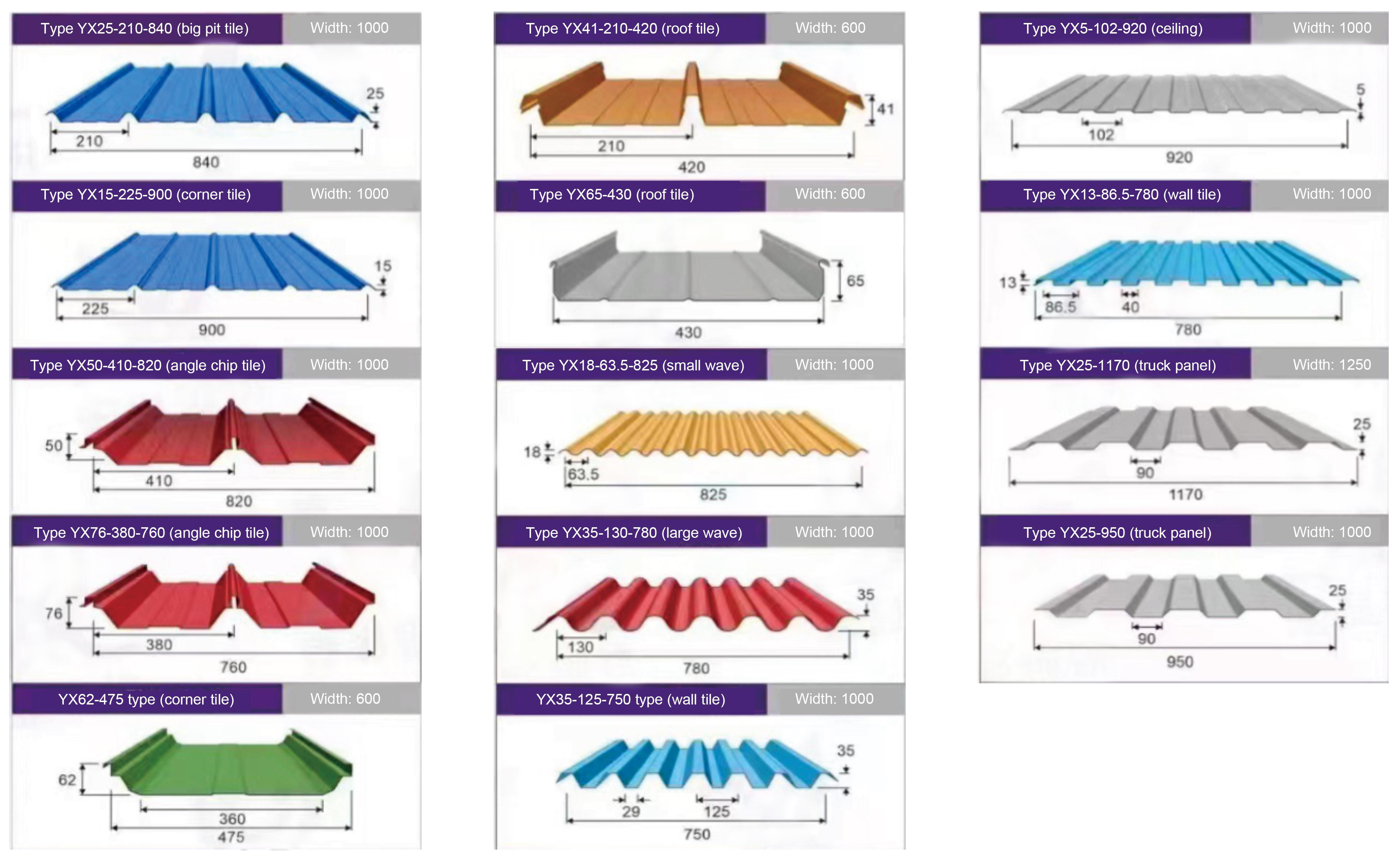

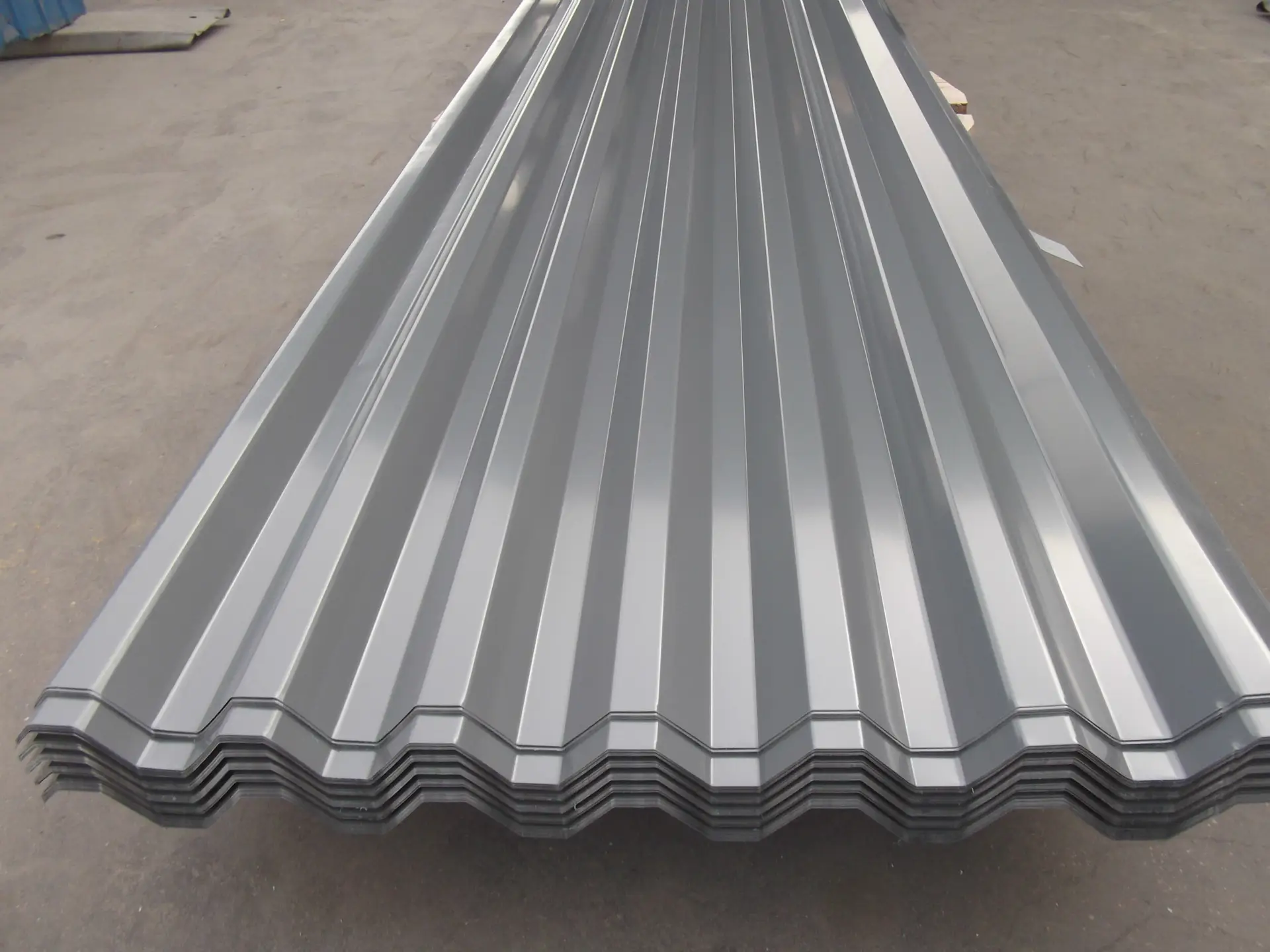

The types of Color Steel Sheets, Chuanya Roof Tile
Features
⒈Light weight: 10-14 kg/m2, equivalent to 1/30 of a brick wall.
⒉ Thermal conductivity: λ<=0.041w/mk.

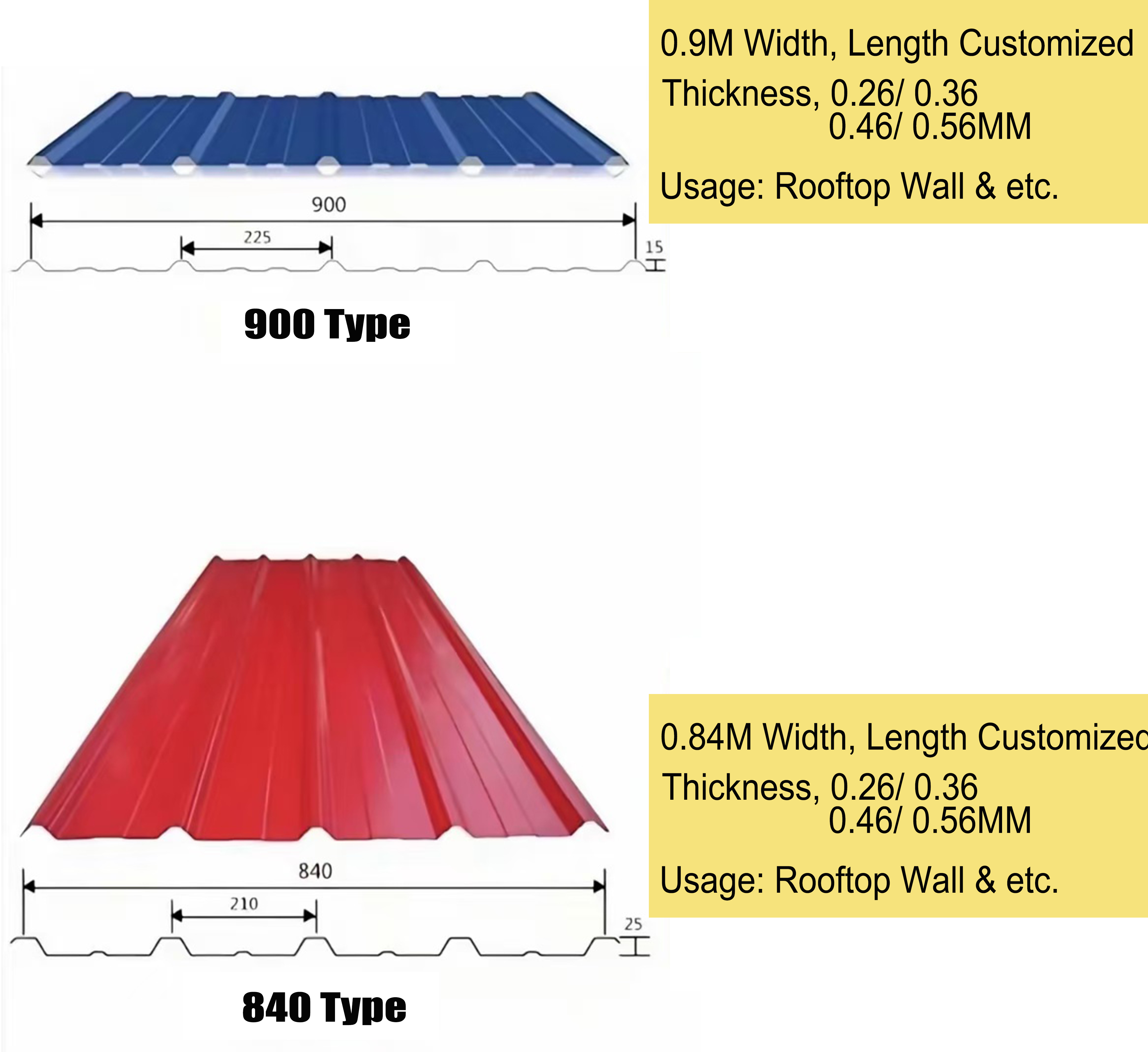

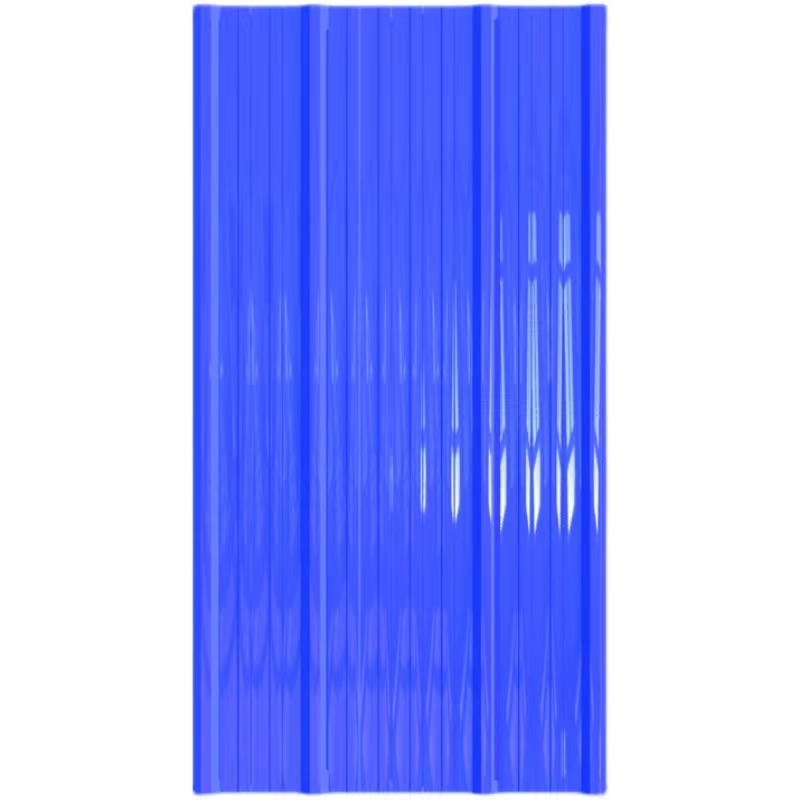

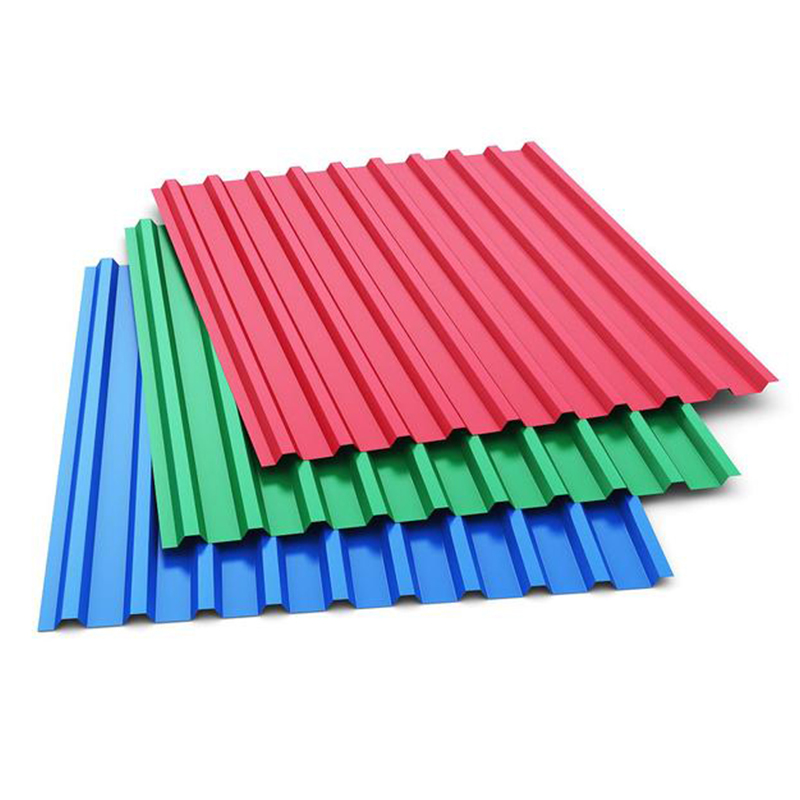

The wave types of Color Steel Tiles, Chuanya Roof Tile
⒊ High strength: Can be used as ceiling enclosure structure board to bear weight, resist bending and compression; general houses do not use beams and columns.
⒋ Bright color: No surface decoration is required, and the anti-corrosion layer of colored galvanized steel plate has a retention period of 10-15 years.

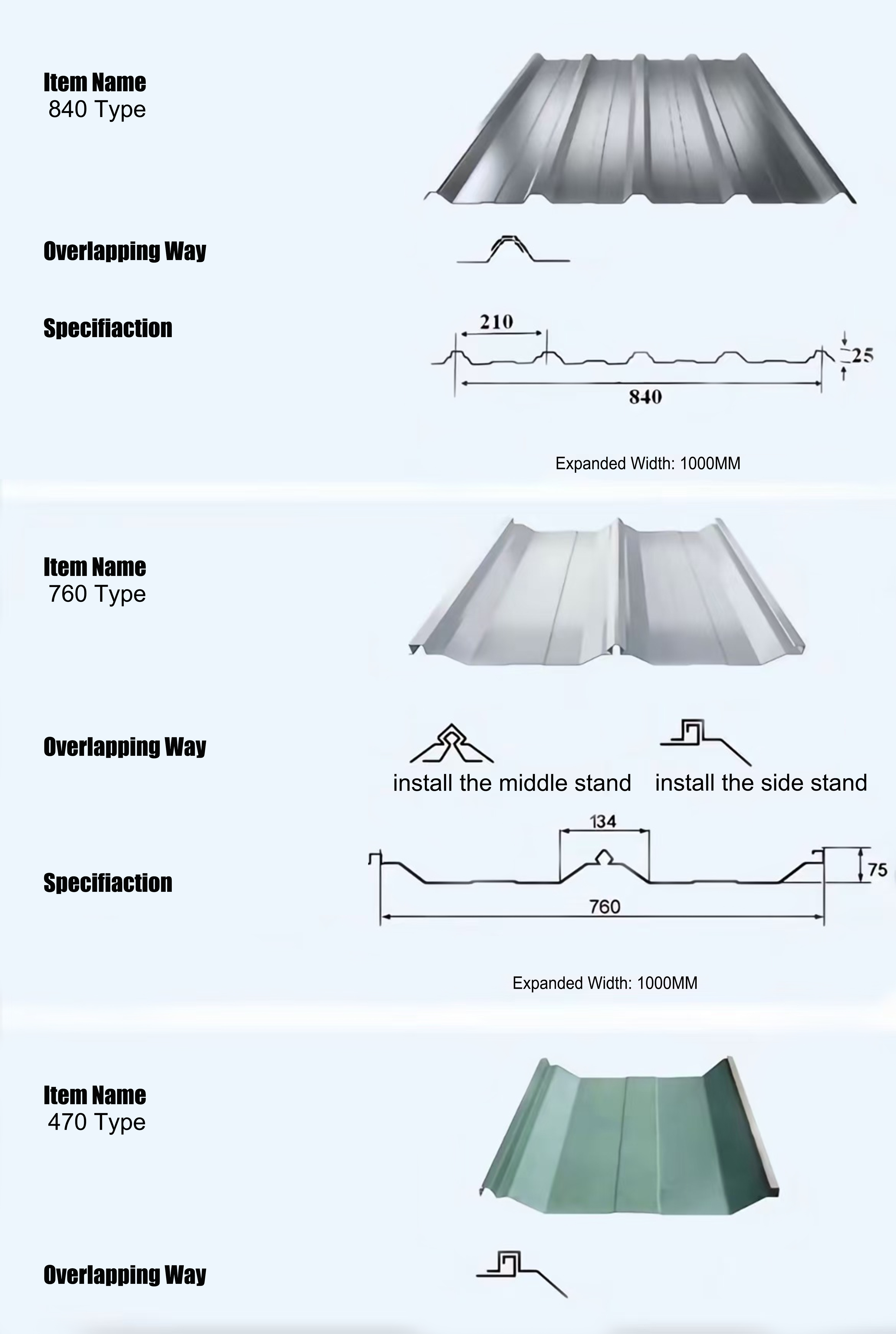

The waveform type of Color Steel Tiles, Chuanya Roof Tile
⒌ Flexible and fast installation: The construction period can be shortened by more than 40%.

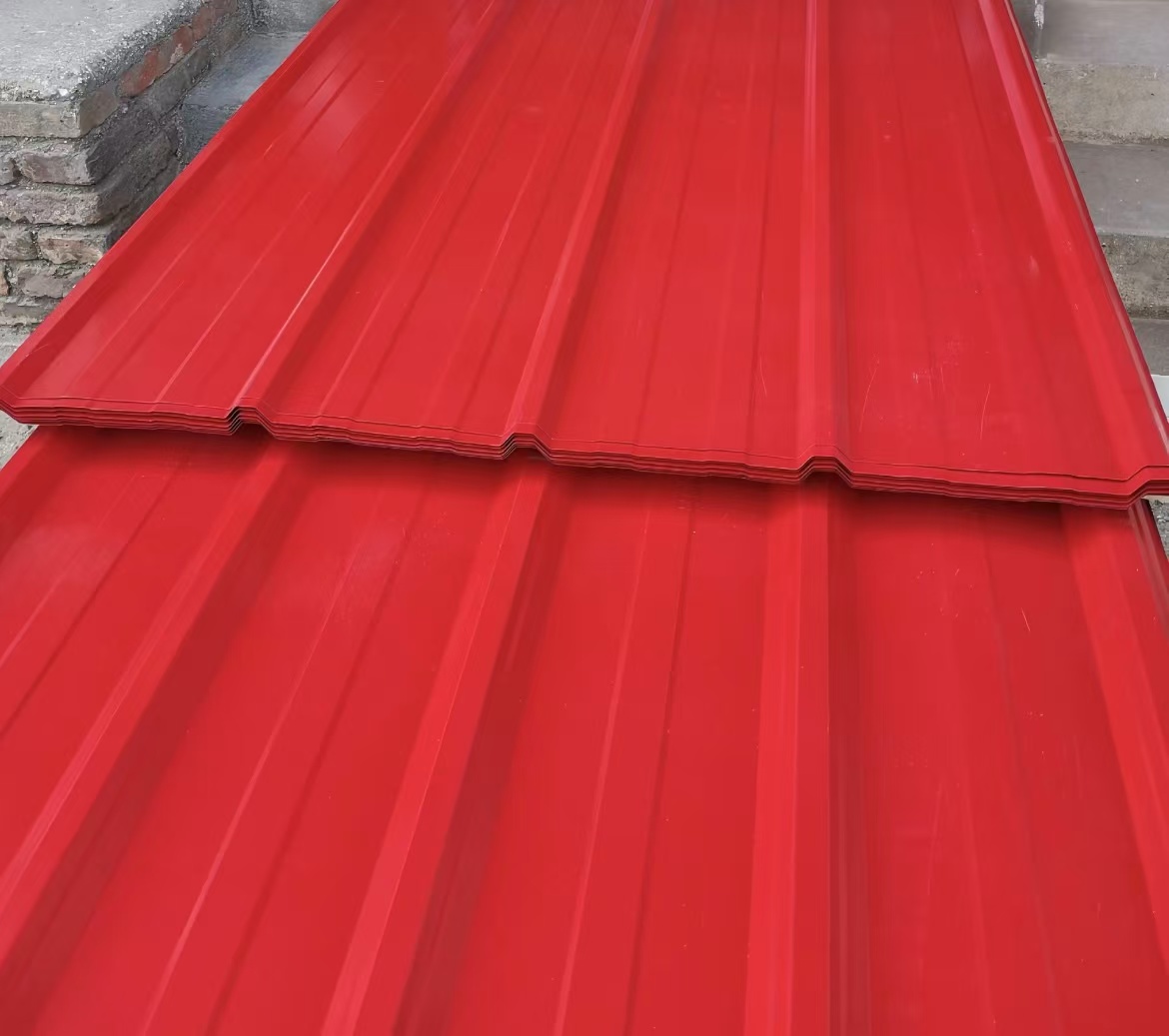

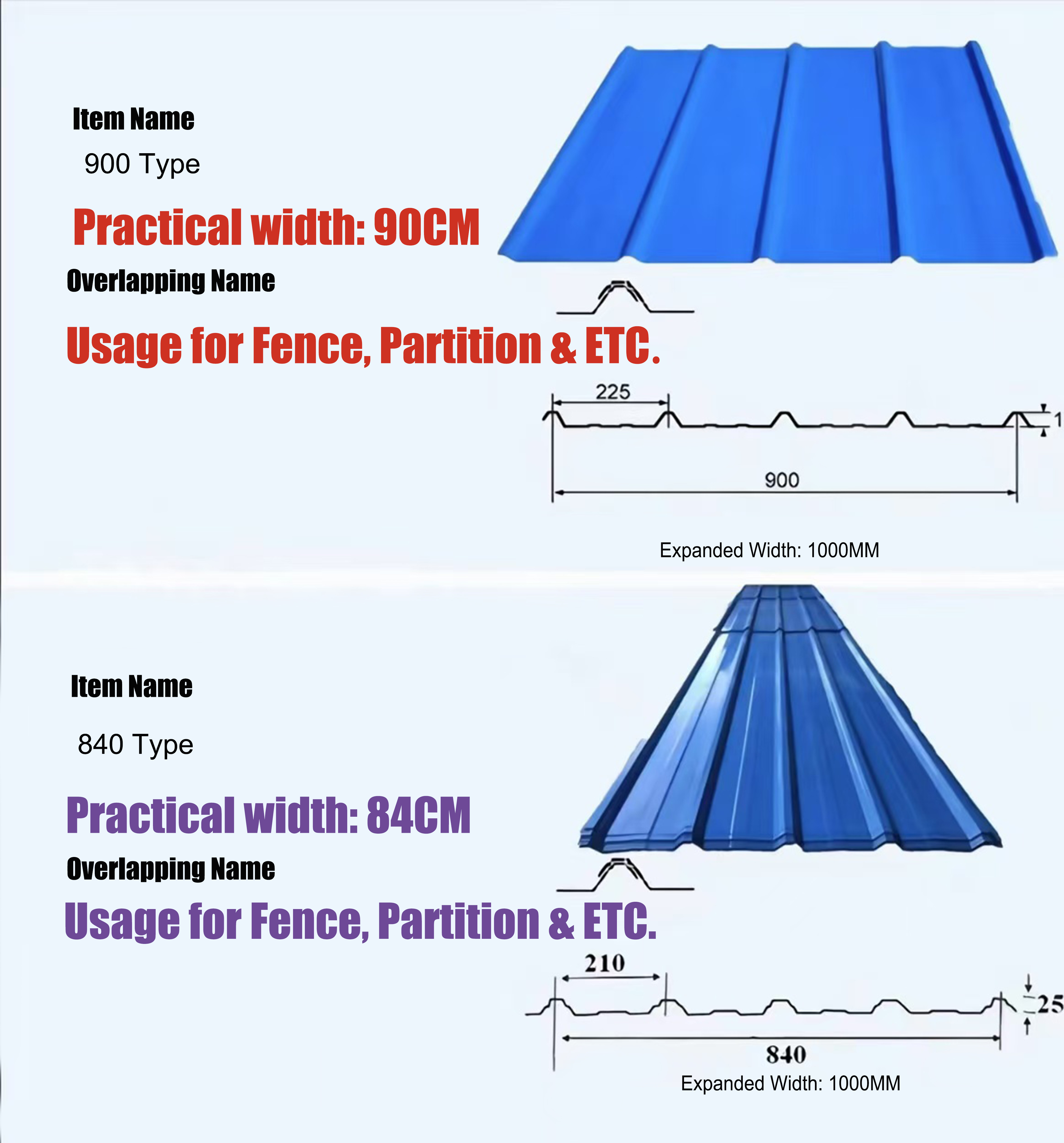

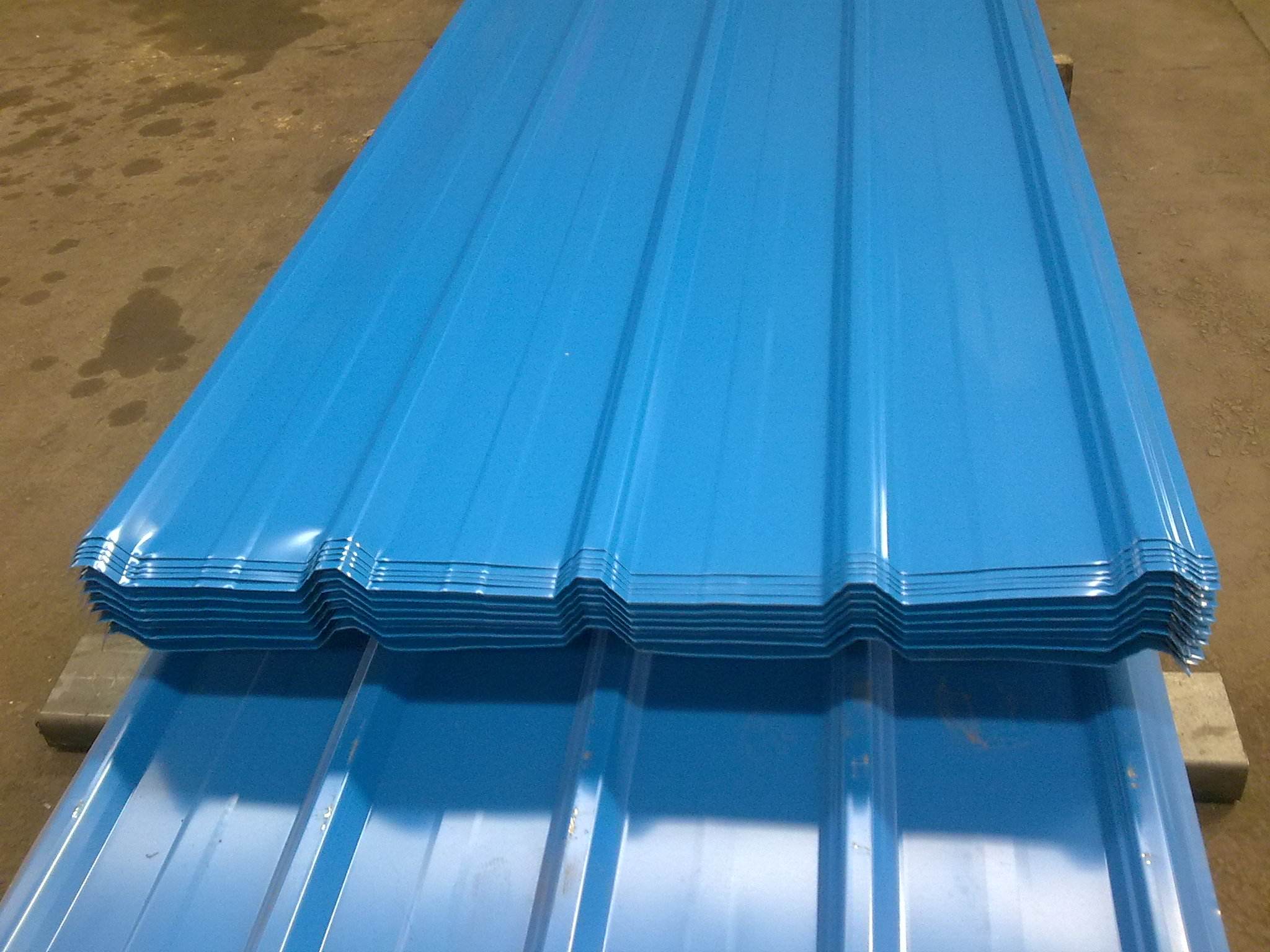

The waveform type of Color Steel Sheets, Chuanya Roof Tile
⒍ Oxygen index: (OI) 32.0 (Provincial Fire Product Quality Inspection Station).

Diagram View

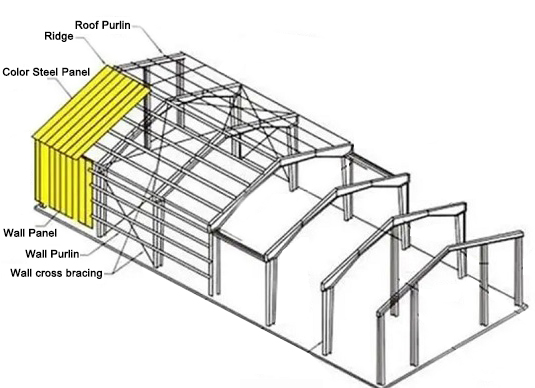

Diagram Of Color Steel Roofing Sheets, Chuanya Roof Tile

Color steel tiles are an efficient and high-quality building material with anti-corrosion and anti-rust properties, making them ideal for a variety of building environments.

Its product features include a flat and smooth surface, fast drying time, and excellent acid and alkali resistance.

Installation

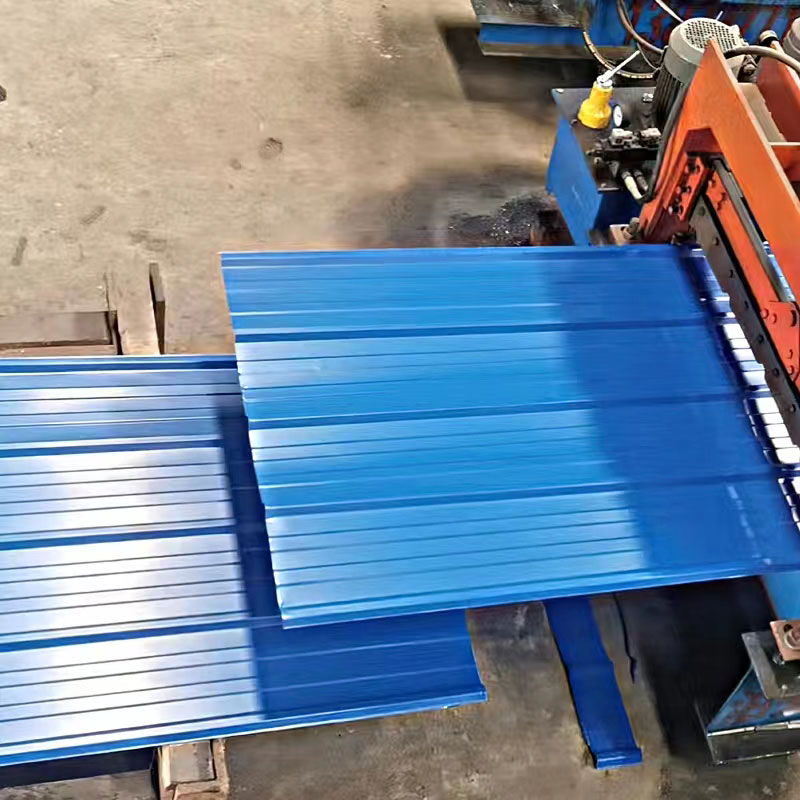

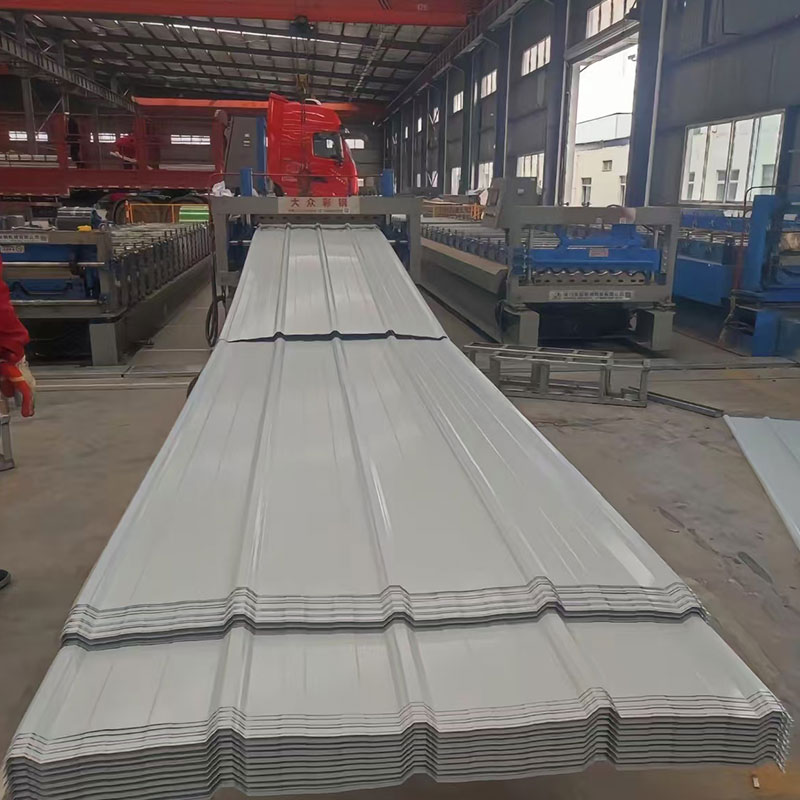

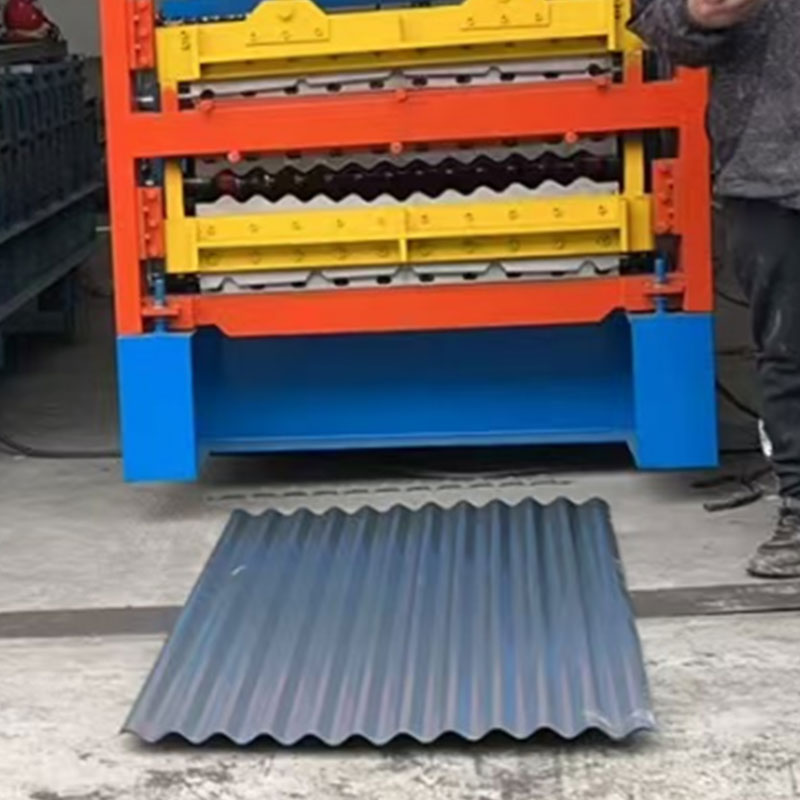

Color Steel Roofing Sheets in Production, Chuanya Roof Tile  Trapezoidal Small Wave of Color Steel Roofing Sheets in Production, Chuanya Roof Tile  Small Waveform of Color Steel Roofing Sheets in Production, Chuanya Roof Tile

Trapezoidal Wave of Color Steel Tiles in Production, Chuanya Roof Tile  Trapezoidal High Wave of Color Steel Tiles in Production, Chuanya Roof Tile  Trapezoidal High Wave of Color Steel Tiles in Production 2, Chuanya Roof Tile

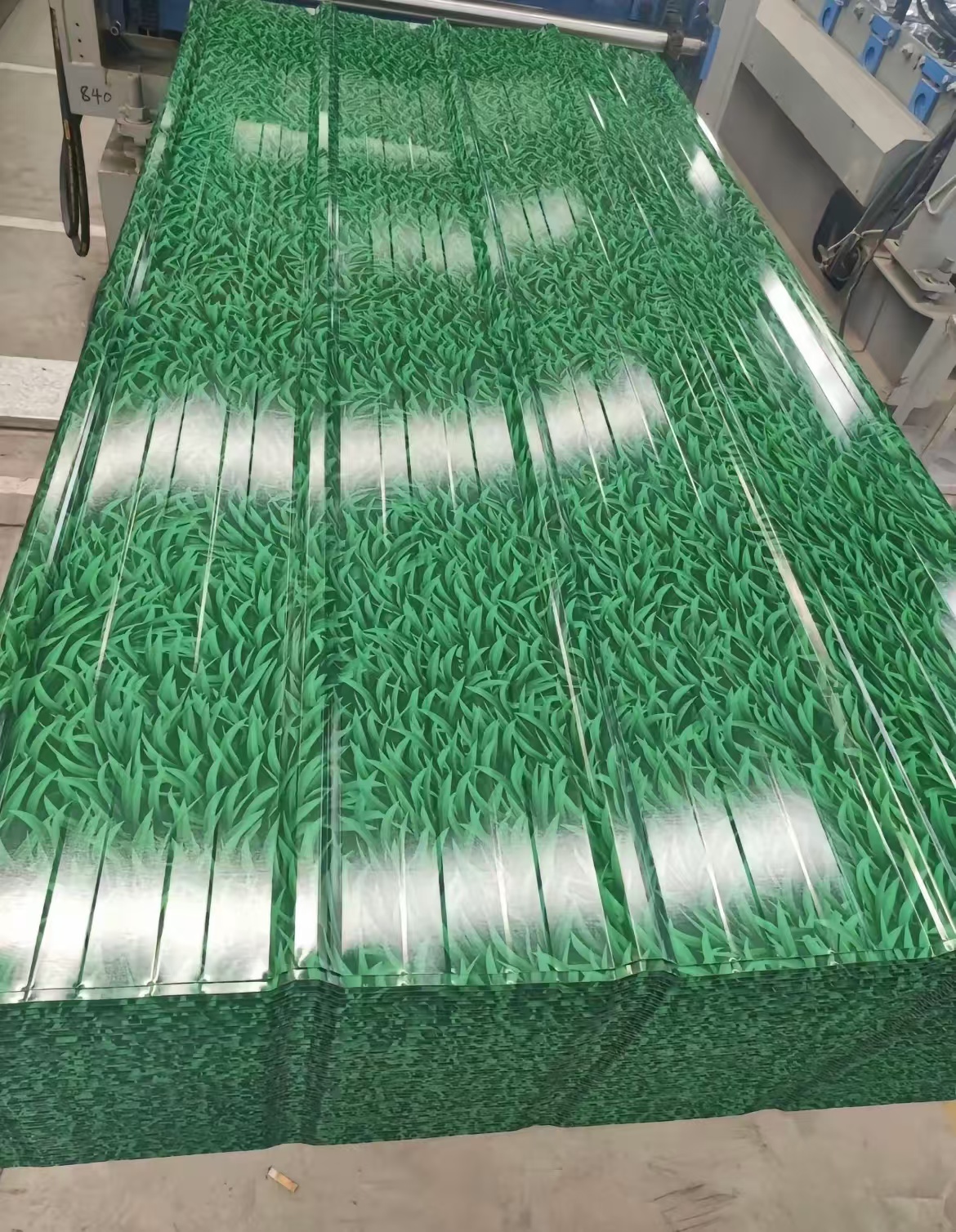

  • Color steel sheets with film used for wall panel, Chuanya Roof Tile
  • Trapezoidal High Wave of Color Steel Tiles Displaying, Chuanya Roof Tile
  • The Color Steel Tiles in Flat to Slope, Chuanya Roof Tile
  • Installation of Color Steel Tiles with Trapezoidal Small Wave Type, Chuanya Roof Tile

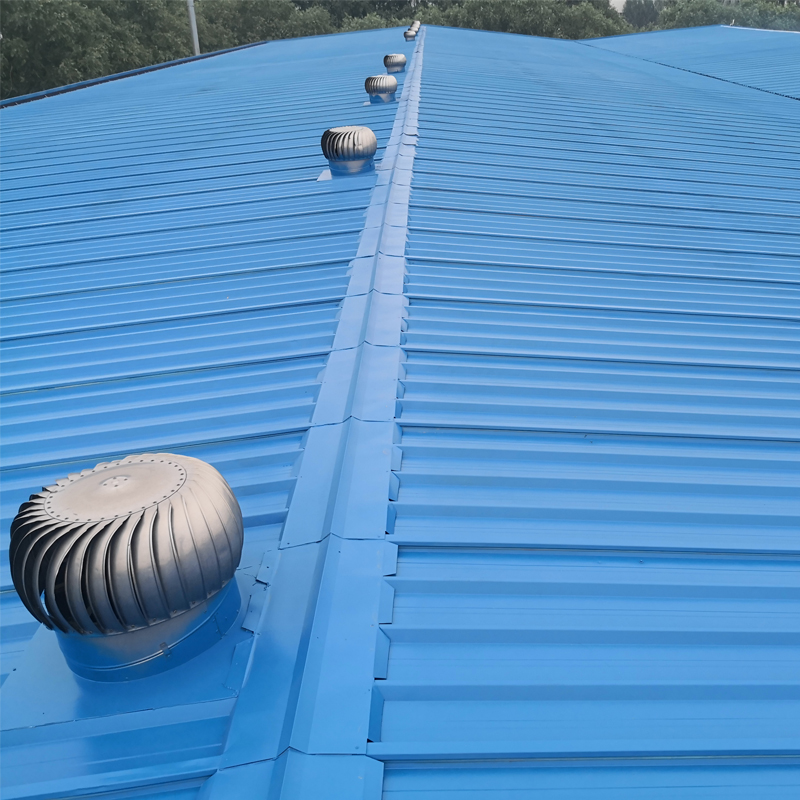

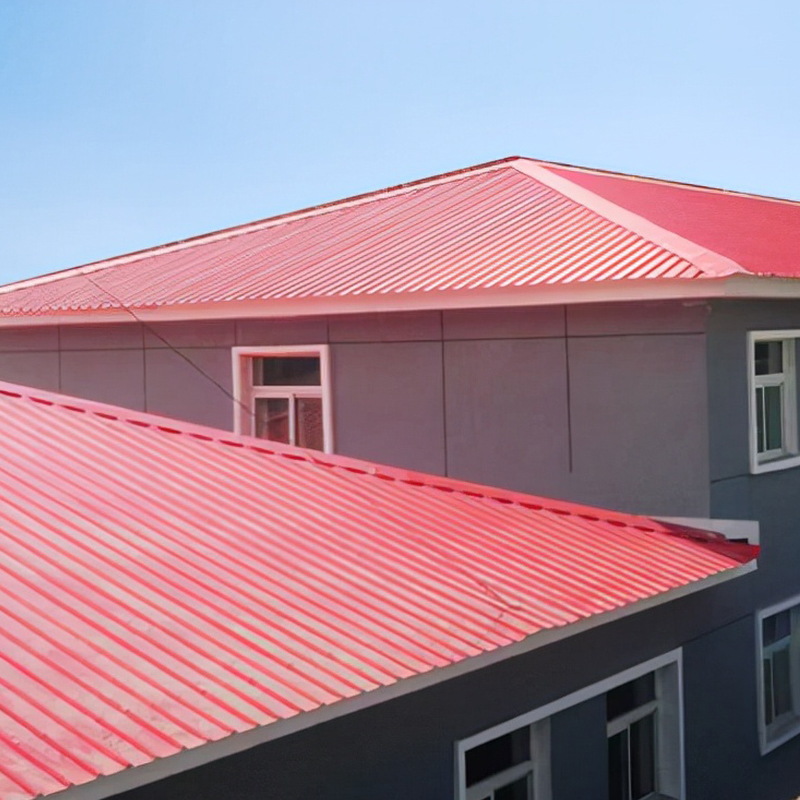

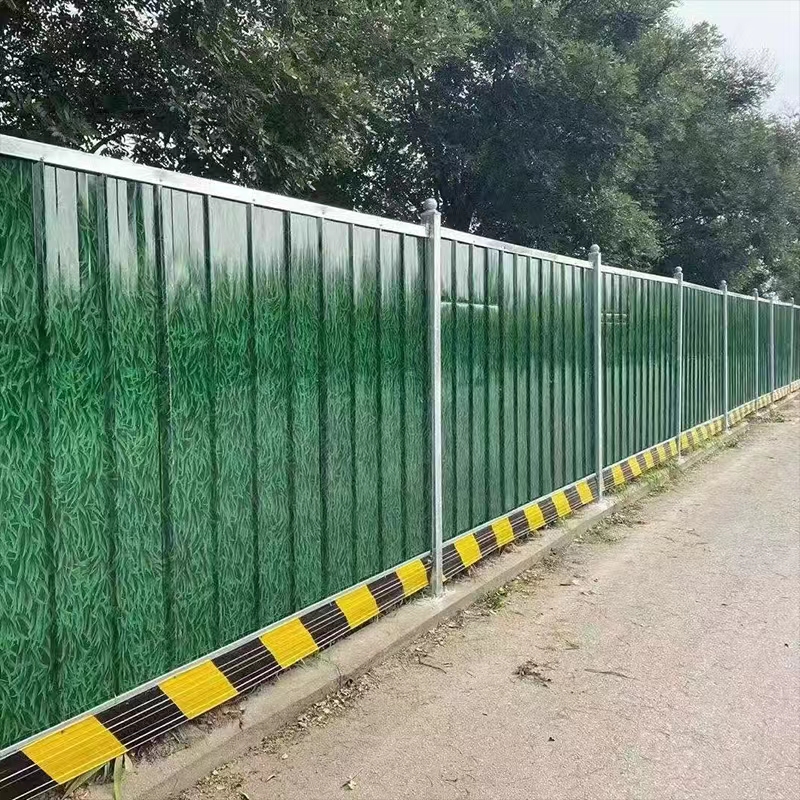

Color Steel Tile used to construction wall panels, Chuanya Roof Tile  Color Steel Tile used to Factory Roof Building, Chuanya Roof Tile  Color Steel Tile used to self-built house, Chuanya Roof Tile

Color Steel Tile compared with PC and UV PVC Materials, Chuanya Roof Tile
