Hangzhou Chuan Ya Building Materials Co., Ltd.

Chuanya resin tiles are mainly made of PP, PVC, PC & etc.

Compared with old cement tiles and glazed tiles, the weight of resin tiles is reduced by 50%, but its comprehensive mechanical properties such as hardness and toughness are not inferior to traditional tiles. Traditional tiles will gradually age and fade in color when facing bad weather and ultraviolet radiation.
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile
  • PVC Resin Tile

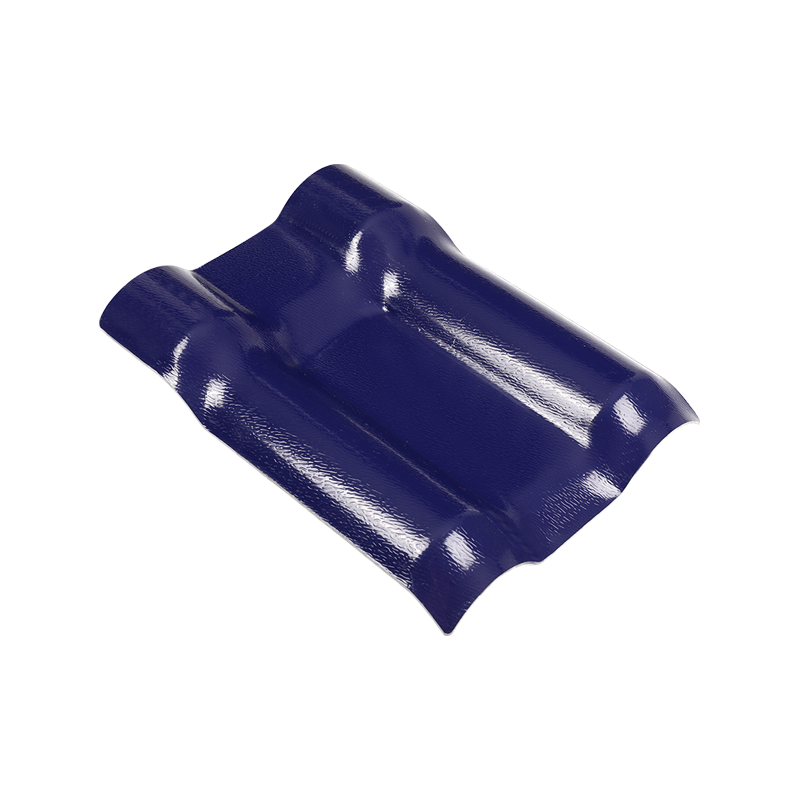

PVC Resin Tile

Durable life of 5-30 years as a synthetic resin tile commonly used width 1050mm type practical width 960mm and 880mm type practical 800mm, length pitch 220mm each section support customization, thickness 2-2.5-3.0mm can choose low-cost conventional material or quality new material.

Resin tile has A total of 4 layers, the surface is covered with asa weathering film, the upper layer is an impact-resistant layer, with good toughness, and the middle layer is a skeleton layer, mainly composed of polyethylene resin, calcium powder, and other additives, the bottom layer is a wear-resistant layer, using the advanced co-extrusion (A/B/C) technology once processed, the main features are: Color stability, rich color, aging resistance, flame retardant, heat insulation, lightweight material, no deformation.

It is widely used in slope leveling projects, rural construction, and renovation projects. Compared with the old-fashioned cement tile glazed tile, the weight of the resin tile is reduced by 50%, but its hardness and toughness are not inferior to the comprehensive mechanical properties of the traditional tile, which will gradually age and fade in the face of bad weather and ultraviolet radiation. The resin tile has strong weather resistance and ultraviolet resistance because of the ASA weather resistance film on the surface, which can effectively resist climate change and ultraviolet erosion and keep the color bright for a long time.

Square Meter Calculation

Shippment Reference

20’ container from NINGBO to DUBAI, UPDATE WEEKLY BY NINGBO *** SHIPPING LLC

  * KG, * M², how long does it take to ship? 30-45 DAYS BY SEA

40’ container from NINGBO to DUBAI, UPDATE WEEKLY BY NINGBO *** SHIPPING LLC

  * KG, * M², how long does it take to ship? 30-45 DAYS BY SEA

For more port freight rates, please get in touch with us + Container and product deconstruction diagrams, rulers, port-to-port maps



View Item Data

Model

1050 type

880 type

Material

PVC resin/ Carbon powder/ Toughener/ Plasticizer/ ASA film/ CPE & etc

Thickness

2.0 mm/ 2.5 mm/ 3.0 mm (over 2,000 meters, customized available 3.

Overall width

1050 mm

880 mm

Effective width

960 mm

800 mm

Length

usually cut to 6.16 M (customized available no length limit, against the max length of the container or bulk packing )

Purlin distance

Vertical 3 M, Horizontal 66 CM

Weight

2.1 Kg/mm/M

1.75 Kg/mm/M

 Color

Black/ Gray/ Red/ Brick Red/ Blue/ Green/ Gold/ Pink/ White

Corrugated

7 pcs (1050 type)

6 pcs (880 type)

Km/ Machine

6 Km/ Machine per day

Color Reference

Blue Sky Blue Grey Date red Green
Brick Red Gold

Navy Blue

Black Brown

Details Displaying

Diagram View

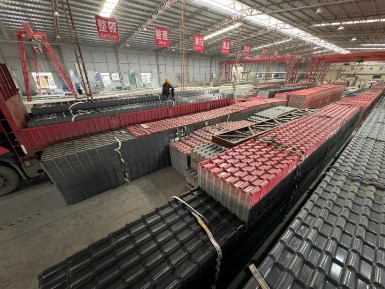

PVC Resin Tile Stock in Warehosue PVC Resin Tile in Production PVC Resin Tile with ASA in Shipment



  • Impaction Test by hammer
  • Impaction Test by tire
  • Resin roof tiles in pounding test
  • Resin roof tiles, test by crimping with pliers
