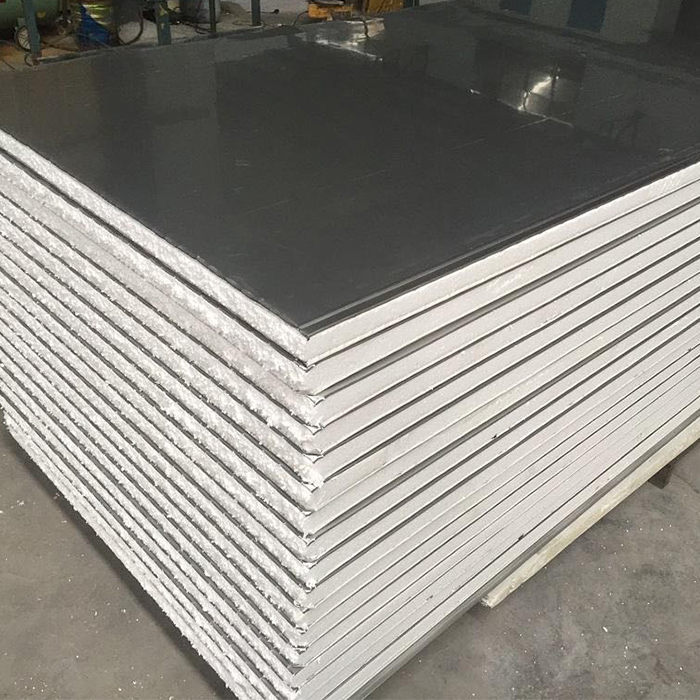

Introduce about Color Steel Sandwich Panel of Chuanya Wall Panel
Color steel sandwich panels are a type of building material that is made of two layers of metal panels and a middle polymer insulation core. They are flame retardant, soundproof, environmentally friendly and efficient. Its structure includes two layers of metal sheets and a core material in the middle. Common core materials include polyurethane and rock wool. These materials give the color steel sandwich panels good thermal insulation, sound insulation and fire resistance.

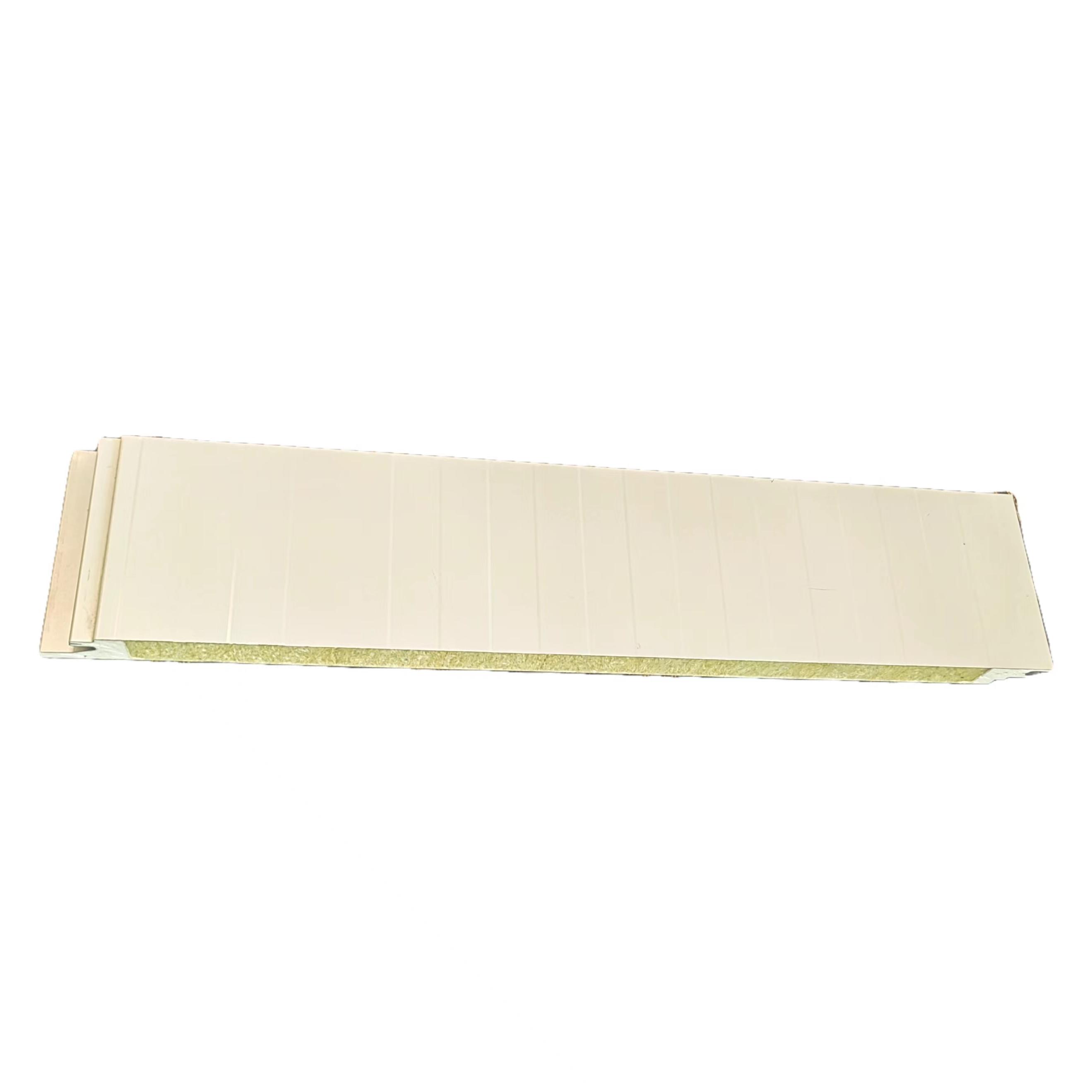

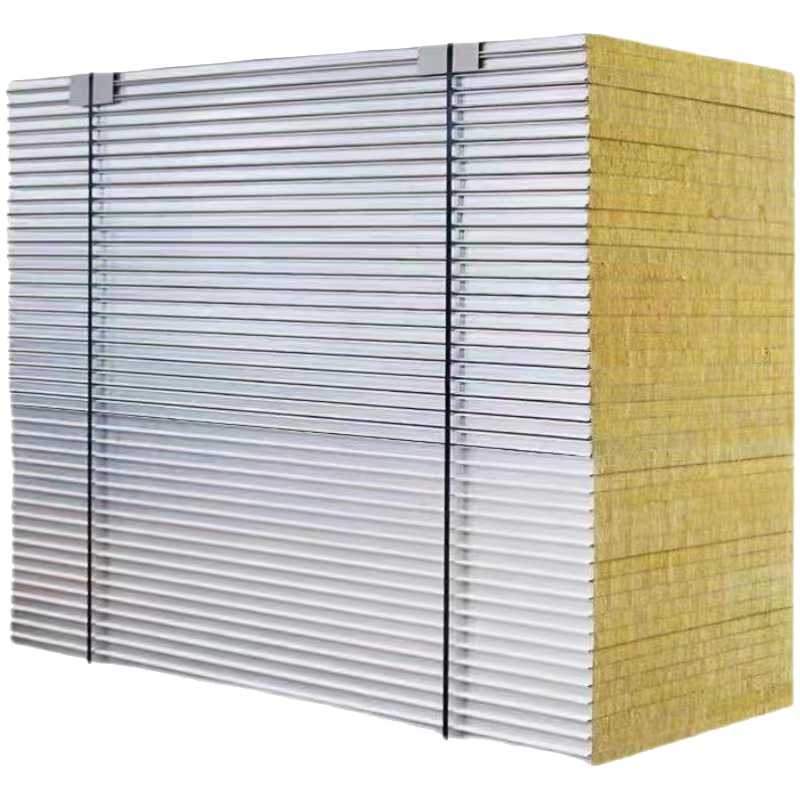

Color Steel Sandwich Panel
Color Steel Sandwaich Panels made by Hangzhou Chuanya Building Materials Co., Ltd are also called color steel laminboard.
Color steel sandwich panels are a type of building material that is made of two layers of metal panels and a middle polymer insulation core. They are flame retardant, soundproof, environmentally friendly, and efficient.
Its structure includes two layers of metal sheets and a core material in the middle. Common core materials include polyurethane and rock wool.
These materials give the color steel sandwich panels good thermal insulation, sound insulation,n, and fire resistance.
Square Meter Calculation
Shippment Reference, If 5CM Thickness, against 950 Type , Proportion 60KG Per Thickness Per Meters
20’ container
Total 2,257.2KG, 752.4 M, packed as two piles in one container, for reference only
40’ container,
Total 3,284.4KG, 1,094.8 M, packed as two piles in one container, for reference only
from NINGBO to DUBAI, UPDATE WEEKLY BY NINGBO *** SHIPPING LLC
For more port freight rates, please get in touch with us + Container and product deconstruction diagrams, rulers, port-to-port maps
View Item Data
|
Model |
1150/ 950 & Corrugated/ Flated |
|
Material |
Silica Rock/ Magnesium Oxysulfide/ Rockwool/ Hollow Glass Magnesium |
|
Sandwich Thickness |
50/ 75/ 100MM(150MM is used for cold environment) |
|
Steel Thickness |
0.3/ 0.4/ 0.5/ 0.6MM |
|
Overall width |
1M/ 1.2M |
|
Effective Covering |
0.9M/ 1.13M |
|
Length |
6M, Usually against customized |
|
Weight |
Regular in 60KG, Rockwool in 40/ 60 /80KG per squre mere |
|
Color |
White & Blue are Regular, Customized Available |
|
Corrugated |
Flated/ 1130/ 950 |
|
Km/ Machine |
1,500M/ one Machine per day |
- Color steel sandwich panels are often tongue-and-groove inserts. They are easy to install, time-saving, material-saving, flat and high-strength. They are especially suitable for ceiling and partition systems.
- Thickness (mm): 50-300;
- Length (mm): Due to continuous molding production, the board length can be determined according to user needs;
- Width (mm): 1150 (1050) (980) (950)
- Core material properties: A. Polystyrene Volume density: ≥15kg/m3 Thermal conductivity ≤0.036W/m.K Maximum operating temperature: about 100 oC
- Rock wool Volume density: ≥120kg/m3 Thermal conductivity: ≤0.043W/m.K Maximum operating temperature: about 500 oC A|Non-flammability: B1 B. Non-flammability: A
- 950 corrugated color steel sandwich panels It integrates corrugated board and sandwich board, and its strength is three times that of ordinary flat color steel sandwich board. It uses hidden self-drilling screws to connect with the roof truss, which does not damage the exposed part of the color coated board and prolongs the life of the color steel sandwich board. The connection between the boards adopts the buckle cap type, which is convenient for construction and improves the efficiency. The biggest feature is that it is not easy to seep water.
- Rock wool thermal insulation color steel sandwich board Its core material is made of basalt and other natural minerals as the main raw materials, which are melted into fibers at high temperature, added with appropriate amount of adhesive, and solidified. This product is suitable for insulation and sound insulation of industrial equipment, buildings, and ships. It is also suitable for clean rooms, explosion-proof and fire-proof workshop ceilings, partitions, etc.
- PU polyurethane color steel sandwich board The bonding strength of the sandwich board is not less than 0.09MPa, the combustion performance of the sandwich board reaches B1 level, and the bending bearing capacity of the sandwich board is not less than 0.5Kn/m2 when the deflection of the sandwich board is Lo/200 [Lo is the distance between the supports].
Color Reference
 |
|

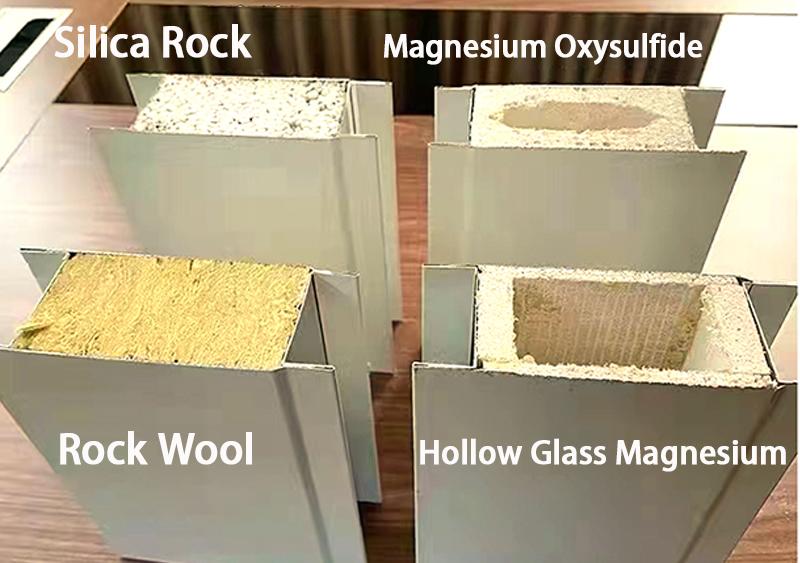

| Color Steel Sandwich Panel, CHuanya Roof Tile | |
 |
 |
| Magnesium oxysulfate purification Panel CHuanya Roof Tile | Silica Rock Sandwich Panel CHuanya Roof Tile |
 |
 |
| Rockwool Hollow Glass Magnesium CHuanya Roof Tile | Rockwool Sandwich Panel CHuanya Roof Tile |
Color steel sandwich panel products are composed of two layers of formed metal panels (or other material panels) and a polymer insulation core that is foamed and matured directly between the panels.
It seems like that packed stuffed materials into double-layer color steel tiles. “Rockwool Purification Panel” has similar Technology.
These finished sandwich panels are easy to install, lightweight, and efficient. The filling system also uses a closed-cell molecular structure to prevent condensation of water vapor.
Details Displaying
 |
|
| The cross section of the Rockwool sandwich panel Chuanya Roof Tile | |
 |
 |

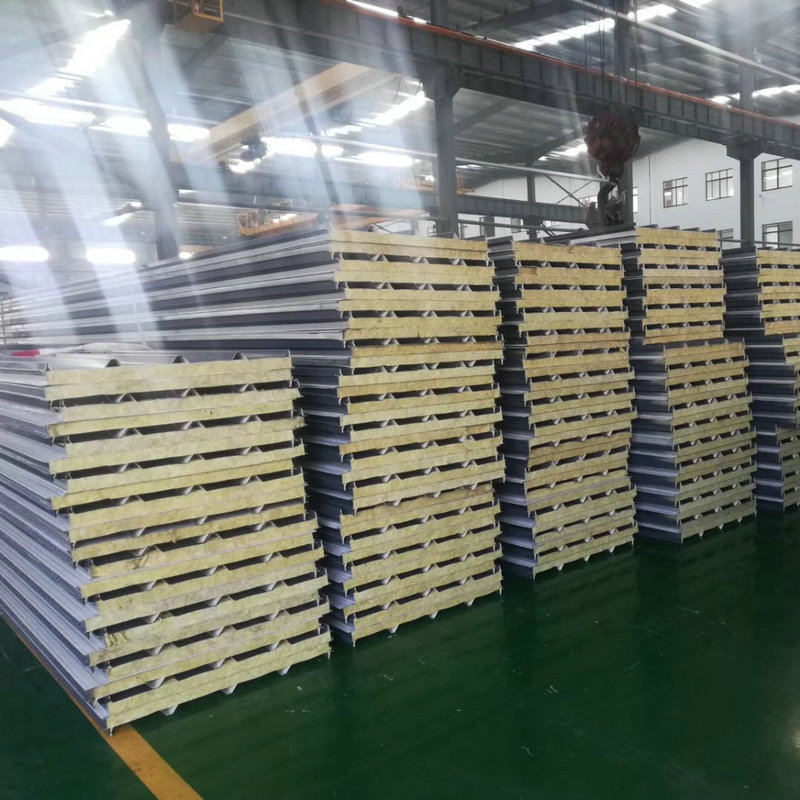

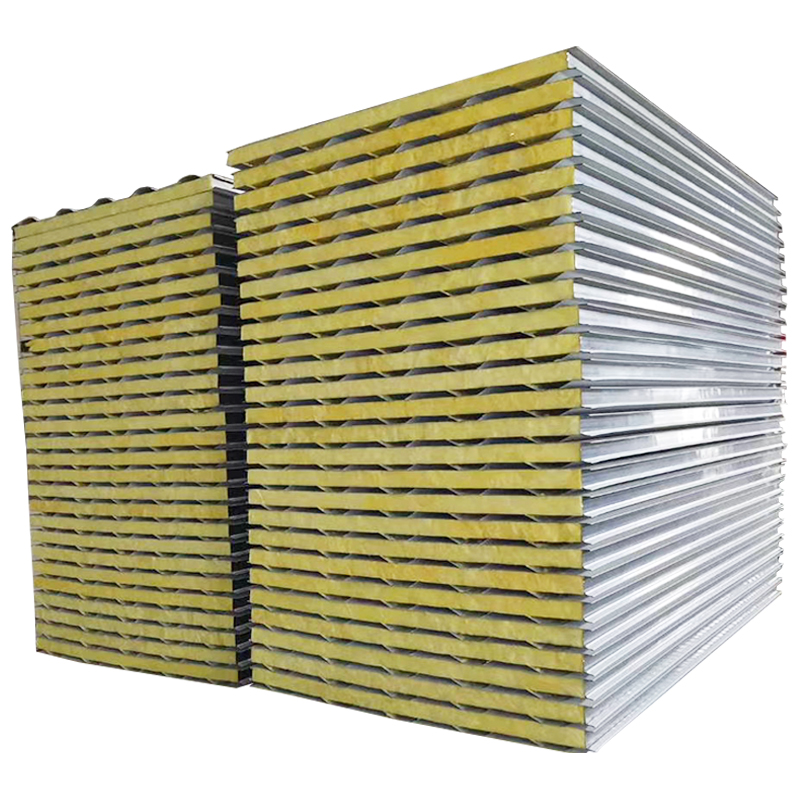

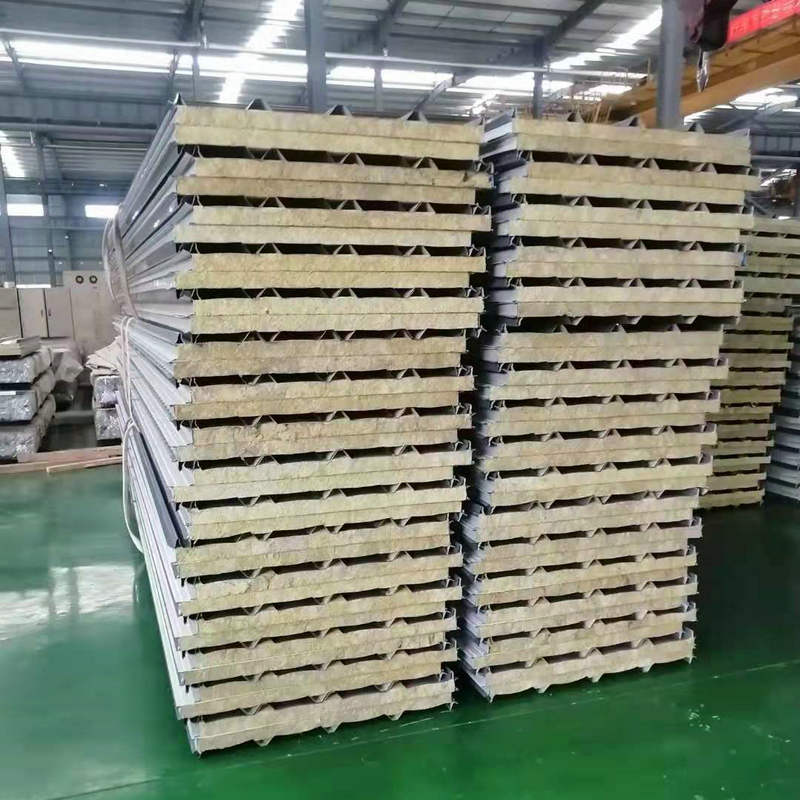

| Stock of Color Steel Sandwich Panel Chuanya Roof Tile | Stock of Color Steel Sandwich Panel Chuanya Roof Tile 2 |
 |
 |

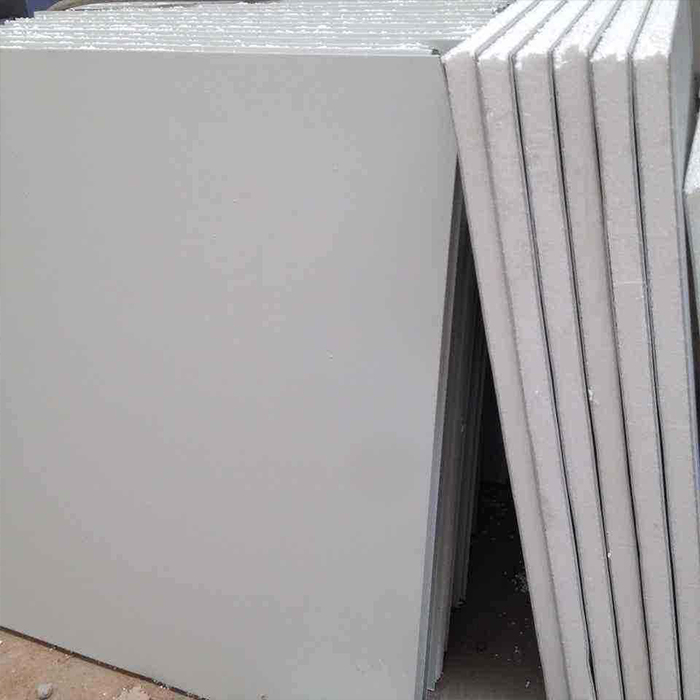

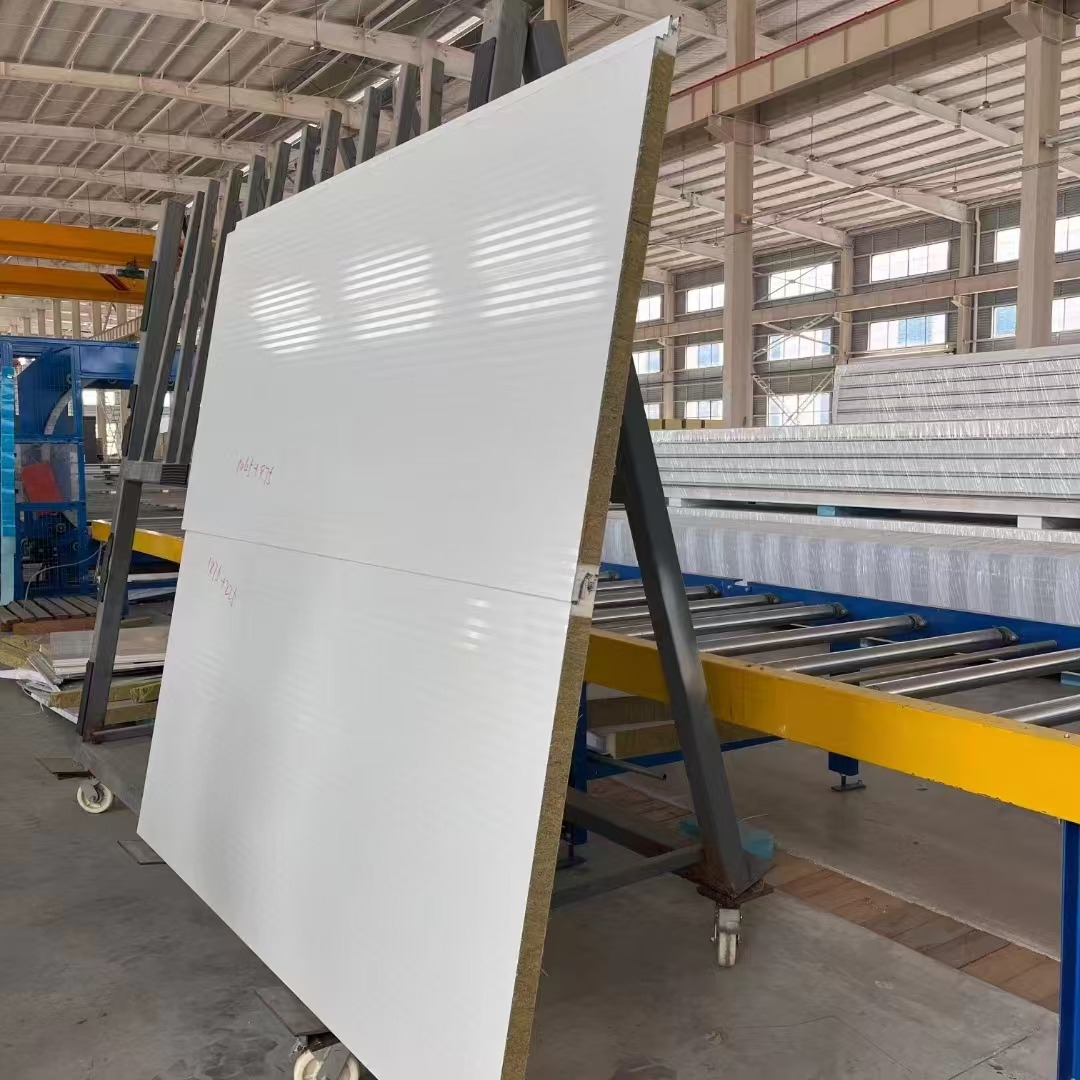

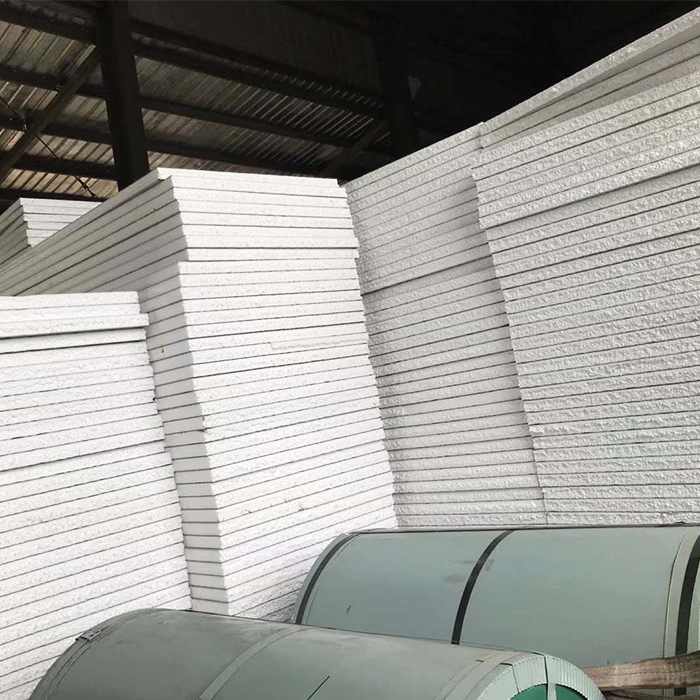

| The Splicing for Color Steel Sandwich Panel Chuanya Roof Tile | Color Steel Panel Use Foam Sandwich Chuanya Roof Tile |
 |
 |

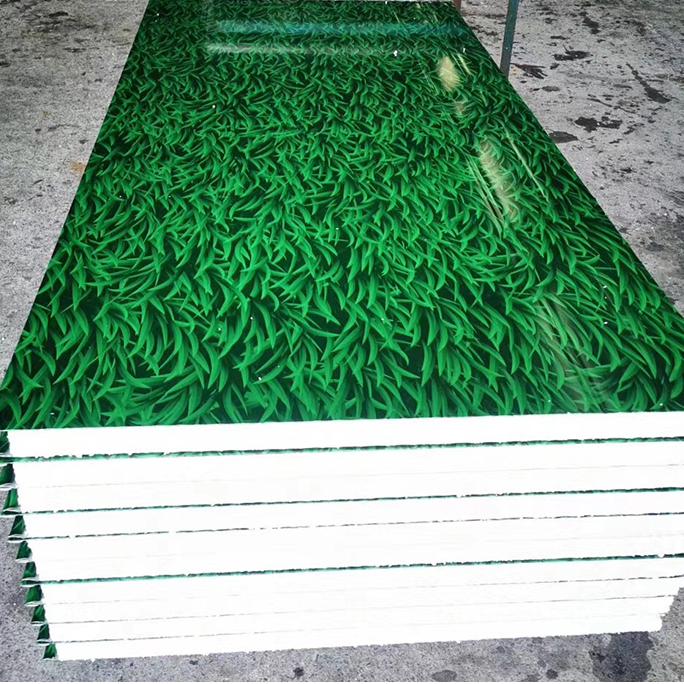

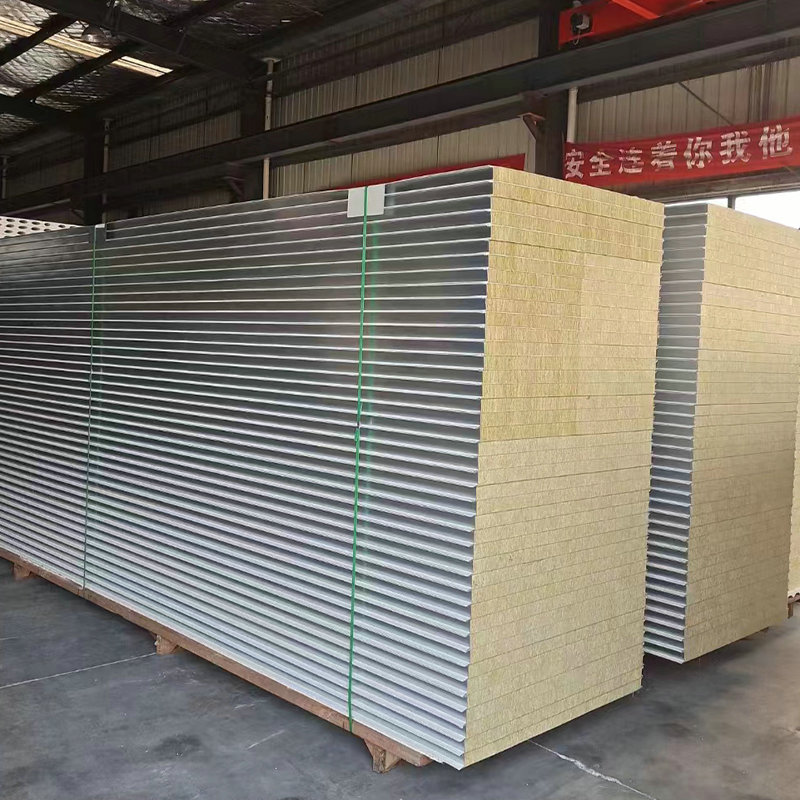

| Color Steel With Pattern made to Sandwich Panel Chuanya Roof Tile | Color Steel Sandwich Panel in Stock Chuanya Roof Tile |
Diagram View
 |
| The Diagram of Chuanya Asphalt Shingles in Production |
The thickness matched any material is in these specifications, unlike its accessories,
which have hundreds of accessories.
Rockwool thickness is 5cm/ 7.5cm/ 10cm
Steelsheet thickness is 0.3mm/ 0.4mm/ 0.5mm/ 0.6mm
(Usually do 15cm thickness if used in cold areas)
Length can be customized
Generally, it is white, and colors can be customized if required
Rock wool is divided into 40 kg, 60 kg, and 80 kg, and the conventional production is basically around 60 kg (per cubic meter)
 |
 |
 |

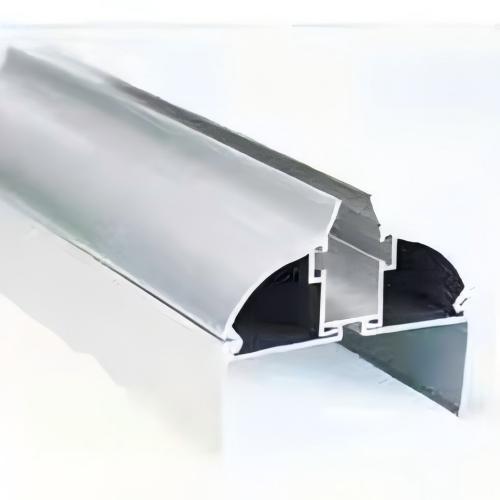

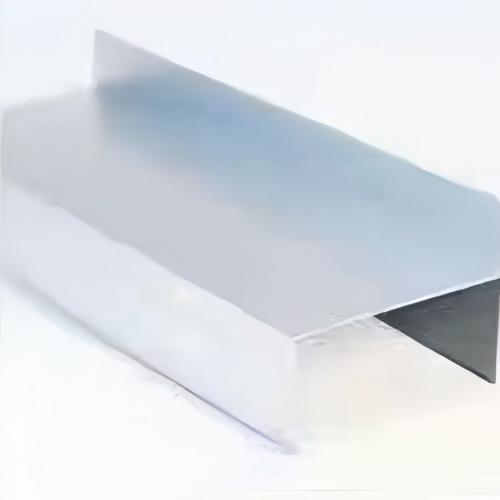

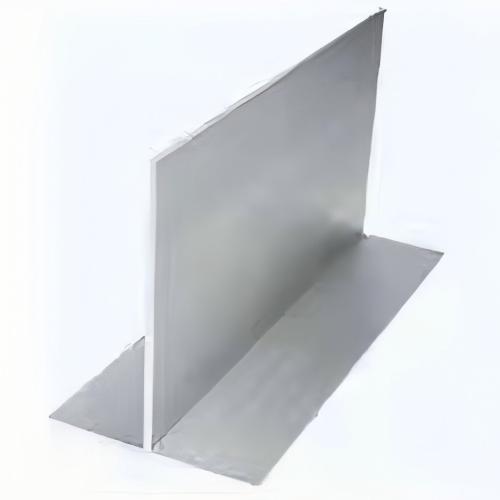

| T-shaped aluminum, Chuanya Color Steel Sandwich Panel | Old-style aluminum alloy window frame, Chuanya Color Steel Sandwich Panel | Aluminum alloy single glass window material, Chuanya Color Steel Sandwich Panel |
 |
 |
 |

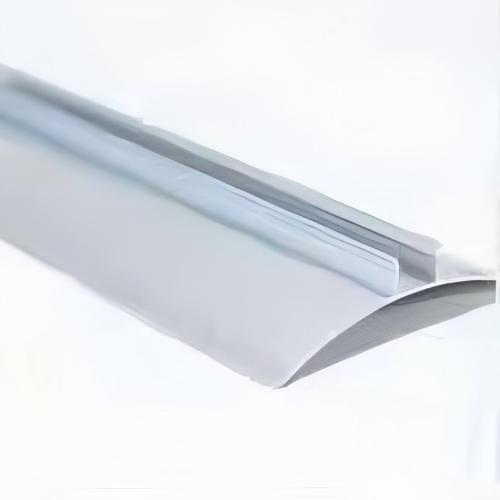

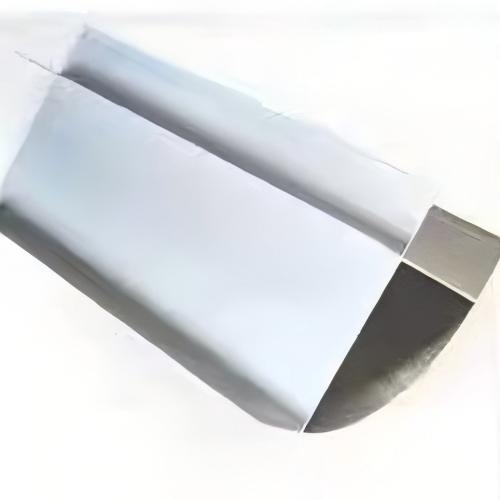

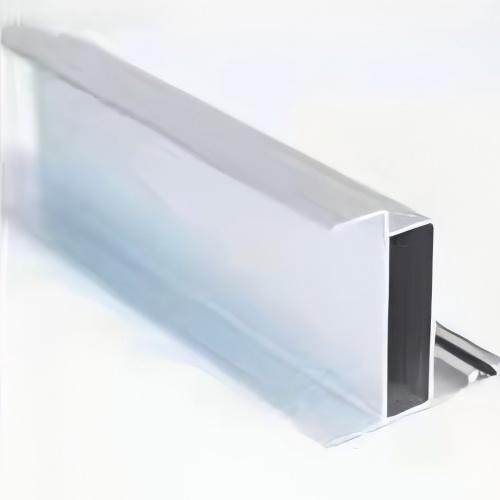

| Aluminum alloy inner arc, Chuanya Color Steel Sandwich Panel | Aluminum alloy Outer cylinder, Chuanya Color Steel Sandwich Panel | Aluminum alloy hollow door material, Chuanya Color Steel Sandwich Panel |
 |
 |
 |

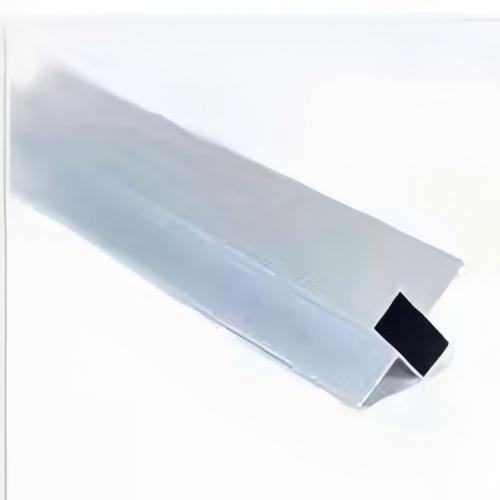

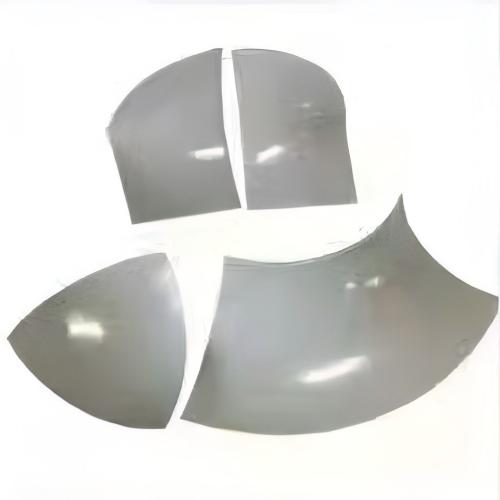

| Door Head, Chuanya Color Steel Sandwich Panel | Small hollow aluminum, Chuanya Color Steel Sandwich Panel | Hollow concealed hanging beam, Chuanya Color Steel Sandwich Panel |
|
|
|
 |
 |

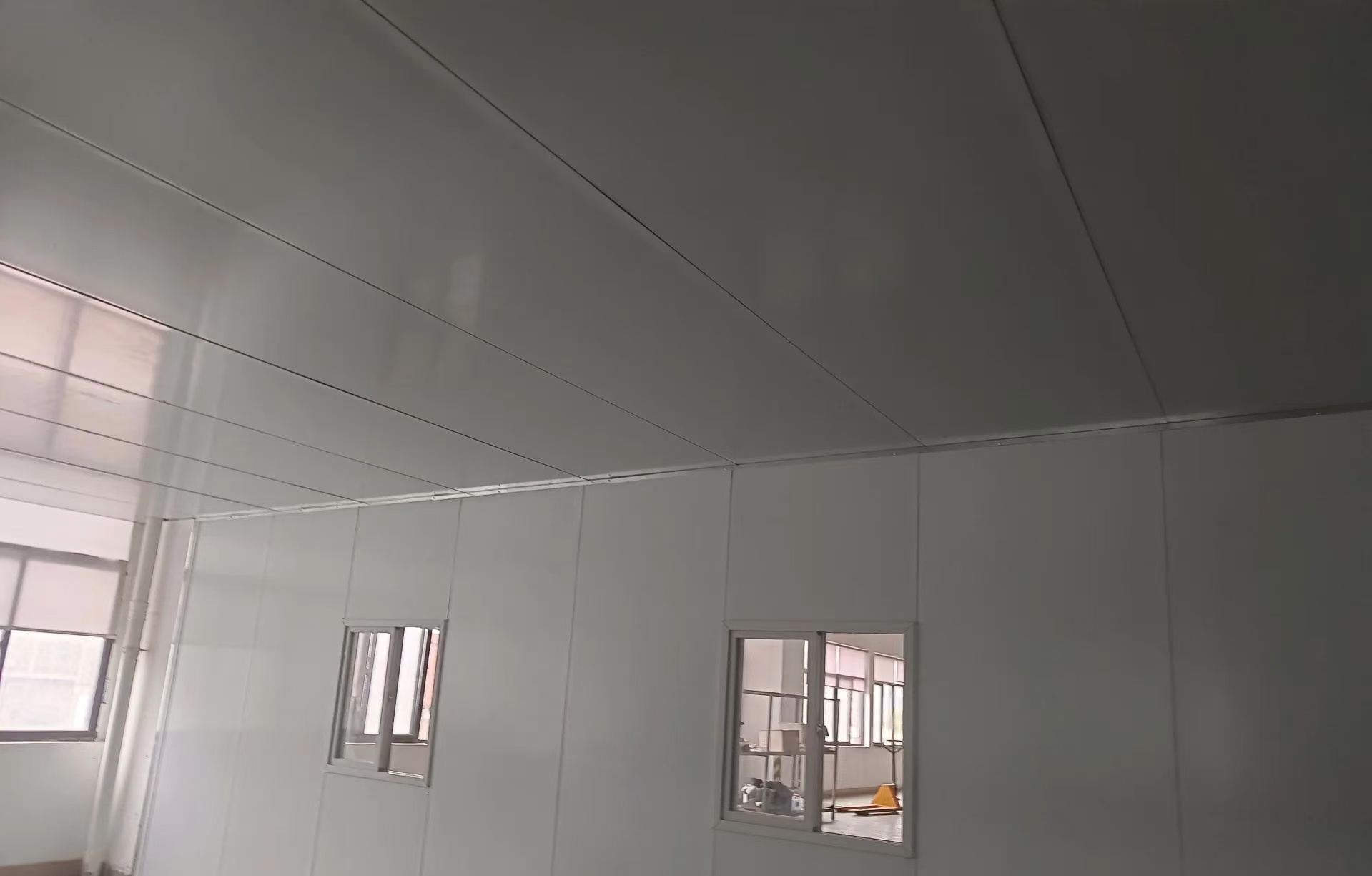

| Color Steel Sandwich Panel Used for Old house roof maintenance, Chuanya Roof Tles | Color Steel Sandwich Panel Used for Factory Roof Building, Chuanya Roof Tles | Color Steel Sandwich Panel Used for Laboratory cubicle, Chuanya Roof Tles | Color Steel Sandwich Panel Used for Dust-free workshop, Chuanya Roof Tles |
Color steel sandwich panels are a common product in current building materials.
They are not only flame retardant and soundproof, but also environmentally friendly and efficient. Color steel sandwich panels are made of two layers of metal panels and a middle layer of polymer insulation core.
They are easy to install, light in weight, environmentally friendly and efficient. In addition, the closed cell molecular structure used in the filling system can prevent condensation of water vapor.
Especially, it can be used as a Wall Panel, Ceiling, and Rooftop.
Common insulation materials for the color steel composite board include: rock wool, glass fiber wool, polystyrene (EPS), polyurethane, etc., with low thermal conductivity, so that mobile houses, integrated houses, steel structure workshops, etc. have good thermal insulation effects.
High-strength color steel plate uses high-strength steel plate as the base material (tensile strength 5600kg/cm) plus the most advanced design and roll forming. Therefore, the color steel plate mobile house has excellent structural characteristics.
 |
 |
 |

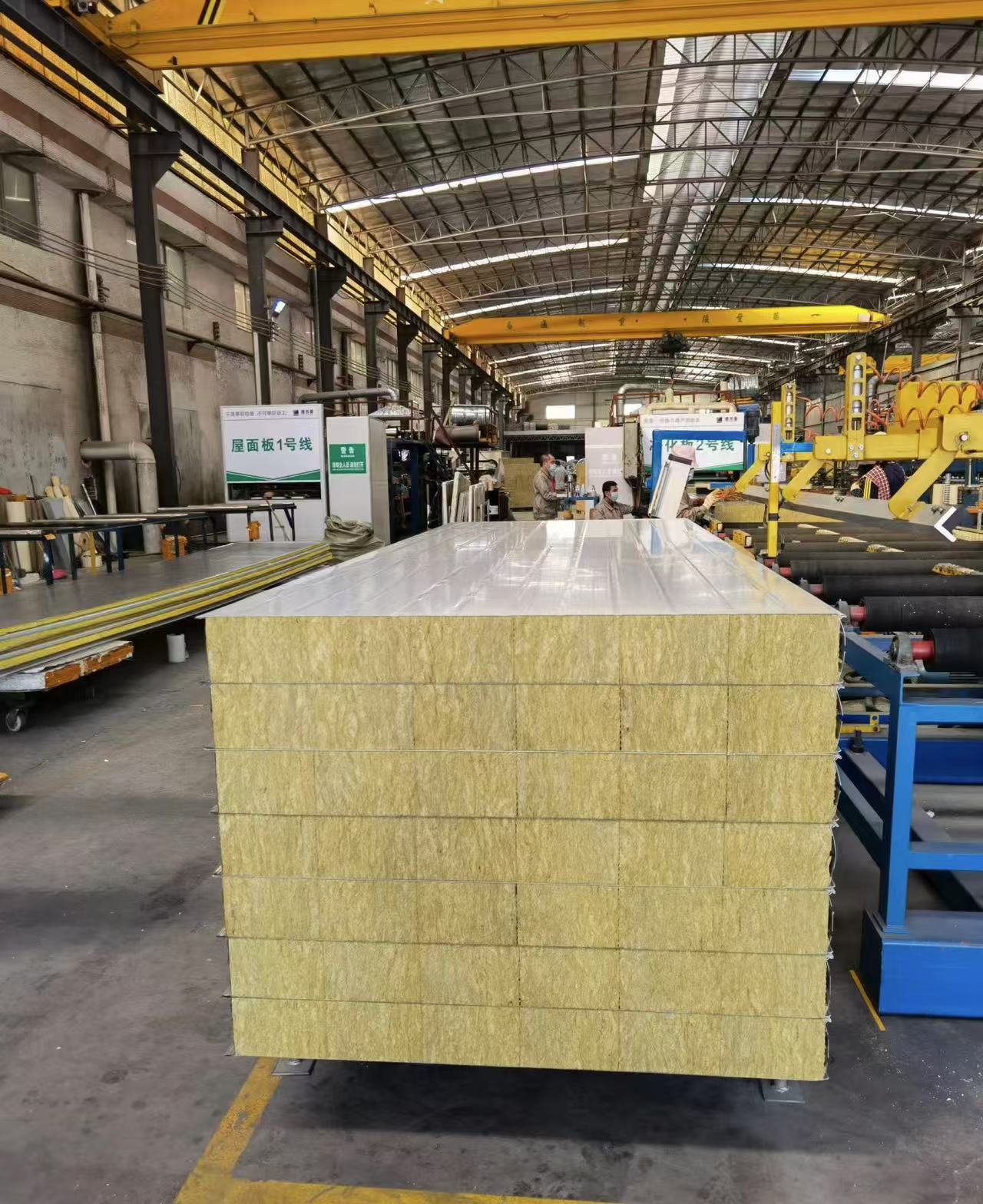

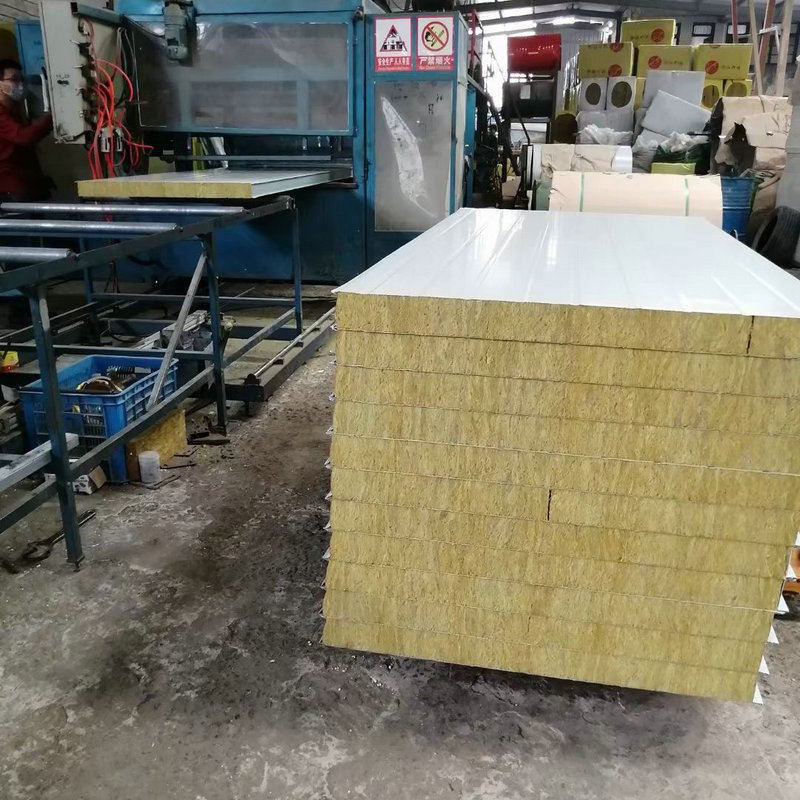

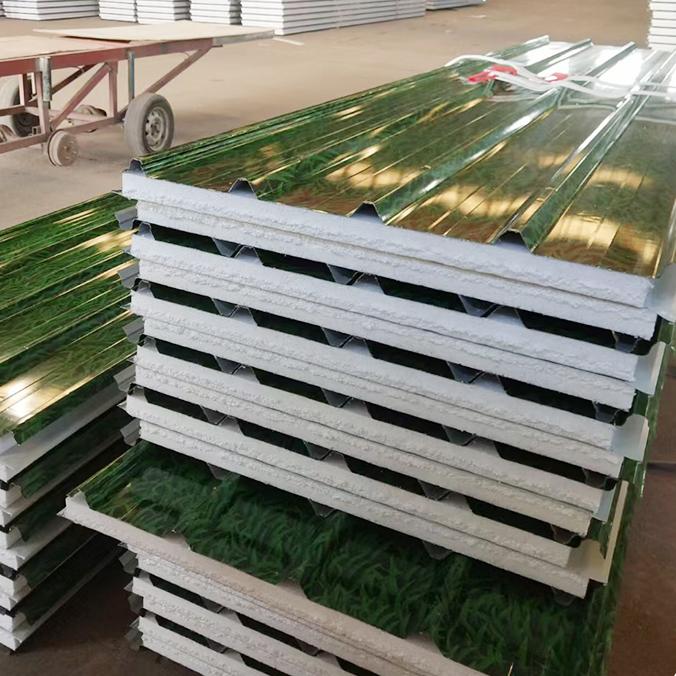

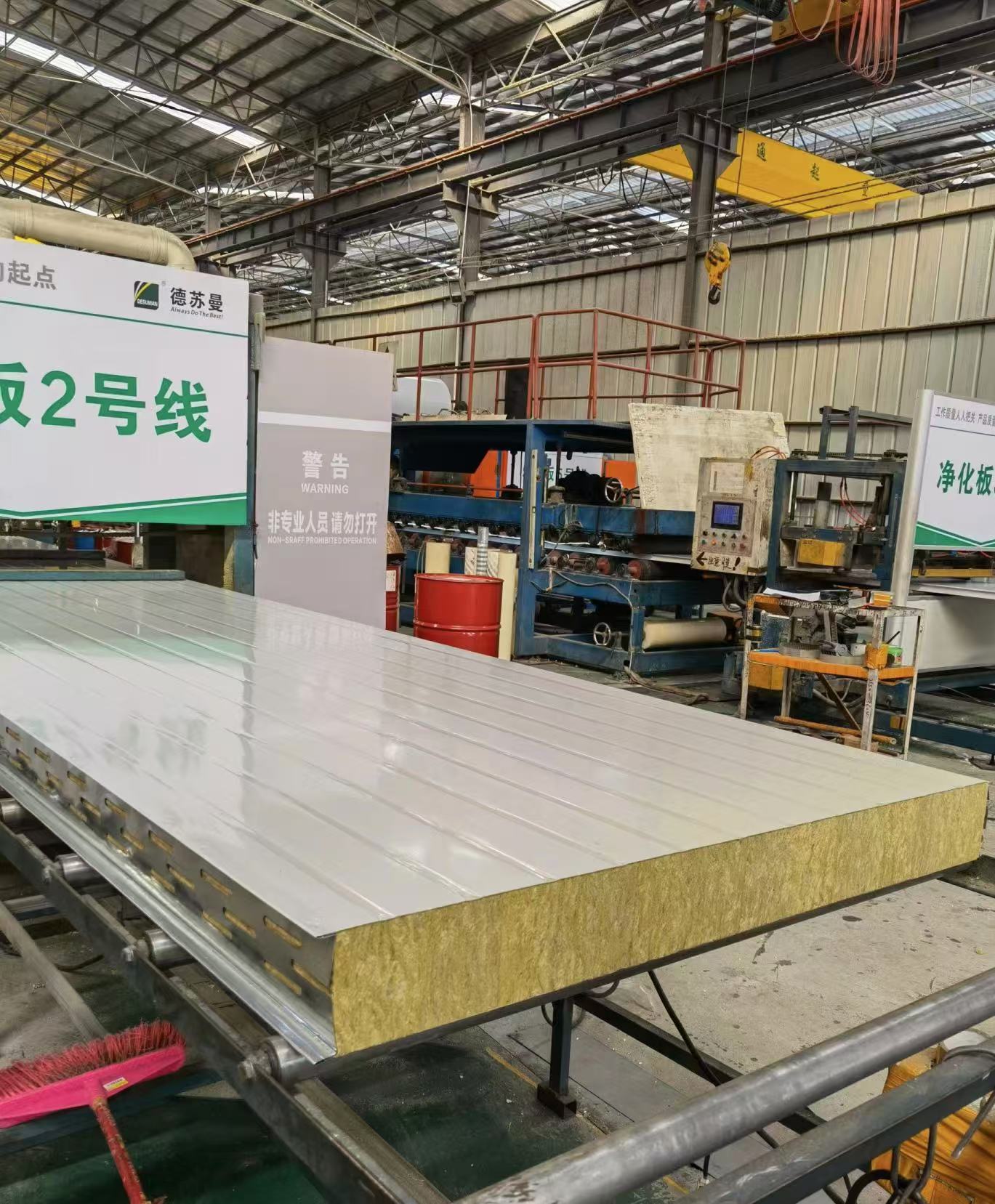

| Color Steel Sandwich Panels are in Production, Chuanya Roof Tiles | Color Steel Sandwich Panels are in Production 2, Chuanya Roof Tiles | Color Steel Sandwich Panels are in Production 3, Chuanya Roof Tiles |
| Color steel sandwich panels have both the high mechanical strength and easy forming properties of steel materials, as well as the good decorative and corrosion resistance of coating materials. Color steel sandwich panels are an emerging material that is highly respected in the world today. | With the advancement of science and technology, the enhancement of environmental awareness and the improvement of people's living standards, color steel sandwich panel movable houses are increasingly showing strong vitality and broad market prospects, and are used in construction, home appliances, electromechanical, transportation, interior decoration, office equipment and other industries. | The core materials used in color steel sandwich panels mainly include phenolic foam, polystyrene, extruded polystyrene, rigid polyurethane, tri-polyester and rock wool, etc. Phenolic foam has excellent fireproof and thermal insulation properties, which cannot be replaced by other materials. For example, the thermal insulation effect of phenolic foam is more than twice that of polystyrene, and its fireproof performance is also higher than that of polyurethane. When polyurethane burns, it will release thick smoke containing hydrogen cyanide. |
 |
 |
 |

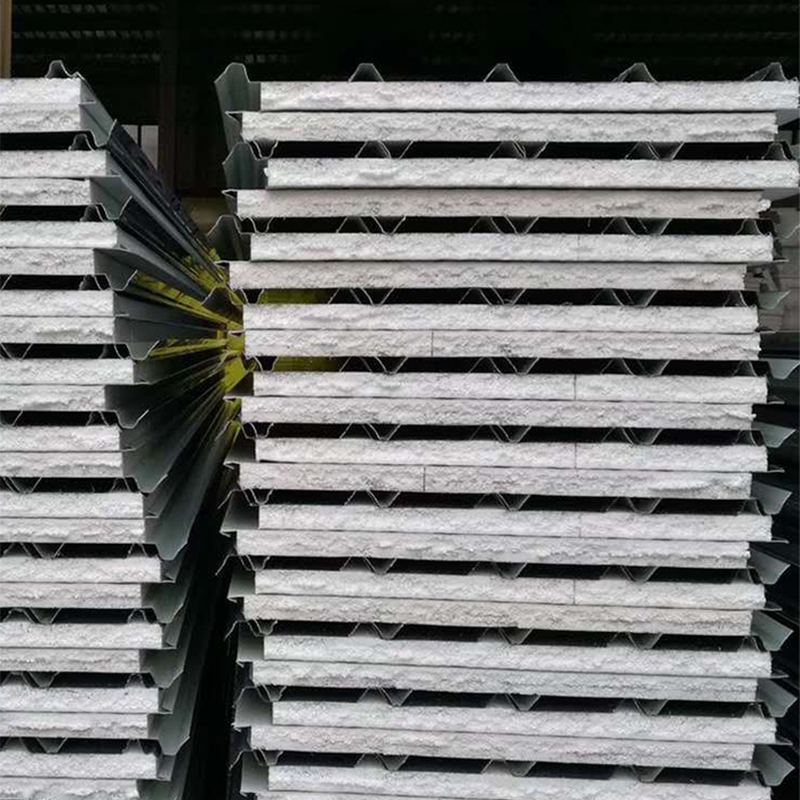

| Color Steel Sandwich Panels are in Packing, Chuanya Roof Tiles | Color Steel Sandwich Panels made to Flated, Chuanya Roof Tiles | Corrugated Color Steel with Foam Sandwich Panels, Chuanya Roof Tiles |
| Color steel plates can prevent fire from six aspects: First, use rock wool with good fire resistance as the core material, which is a fundamental solution. Second, during the construction process, the core material should be kept away from open flame operations such as electric welding and gas welding; Third, during use, some heat sources and fire sources should not be close to the steel plate, but should be kept at a certain distance. | If you want to set up a kitchen in a color steel house, you need to have a thermal insulation layer, and the wall should be equipped with a fireproof rock wool insulation layer; Fourth, it is best not to pass wires and cables through the core material. If you need to pass through, you should add a protective sleeve. Sockets and switch boxes should use metal galvanized boxes and adopt an open installation method; Fifth, simple fire extinguishing equipment should be equipped indoors and outdoors, and fire alarms should be installed if conditions permit, so that people can evacuate quickly; | Sixth, a safe distance of at least 6 meters should be maintained between color steel houses. Although the sandwich filling materials of color steel houses that have not been strictly flame retardant are flammable, they will not spontaneously combust. Strict, scientific and effective management to keep fire away from flammable sandwich filling materials of color steel houses is one of the important ways to prevent fires in color steel houses. |
-
Installation of Color Steel Sandwich Panel, Chuanya Roof Tile
-
Color Steel Sandwich Panel with 7 CM Rockwool as ceiling Chuanya Roof Tile
-
Color Steel Sandwich Panel Capping and Resin Tile Roof Chuanya Roof Tile
 |
 |
 |

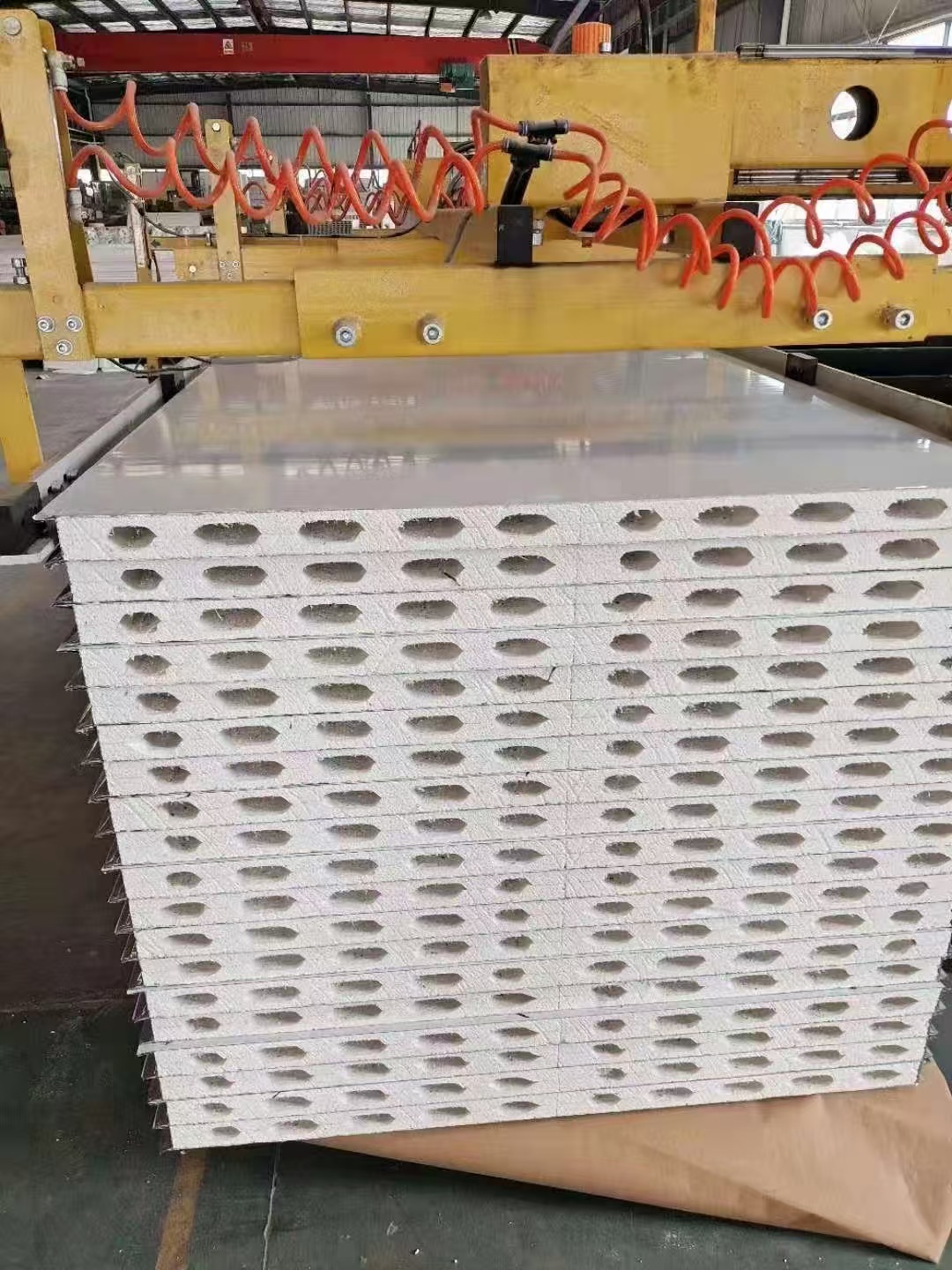

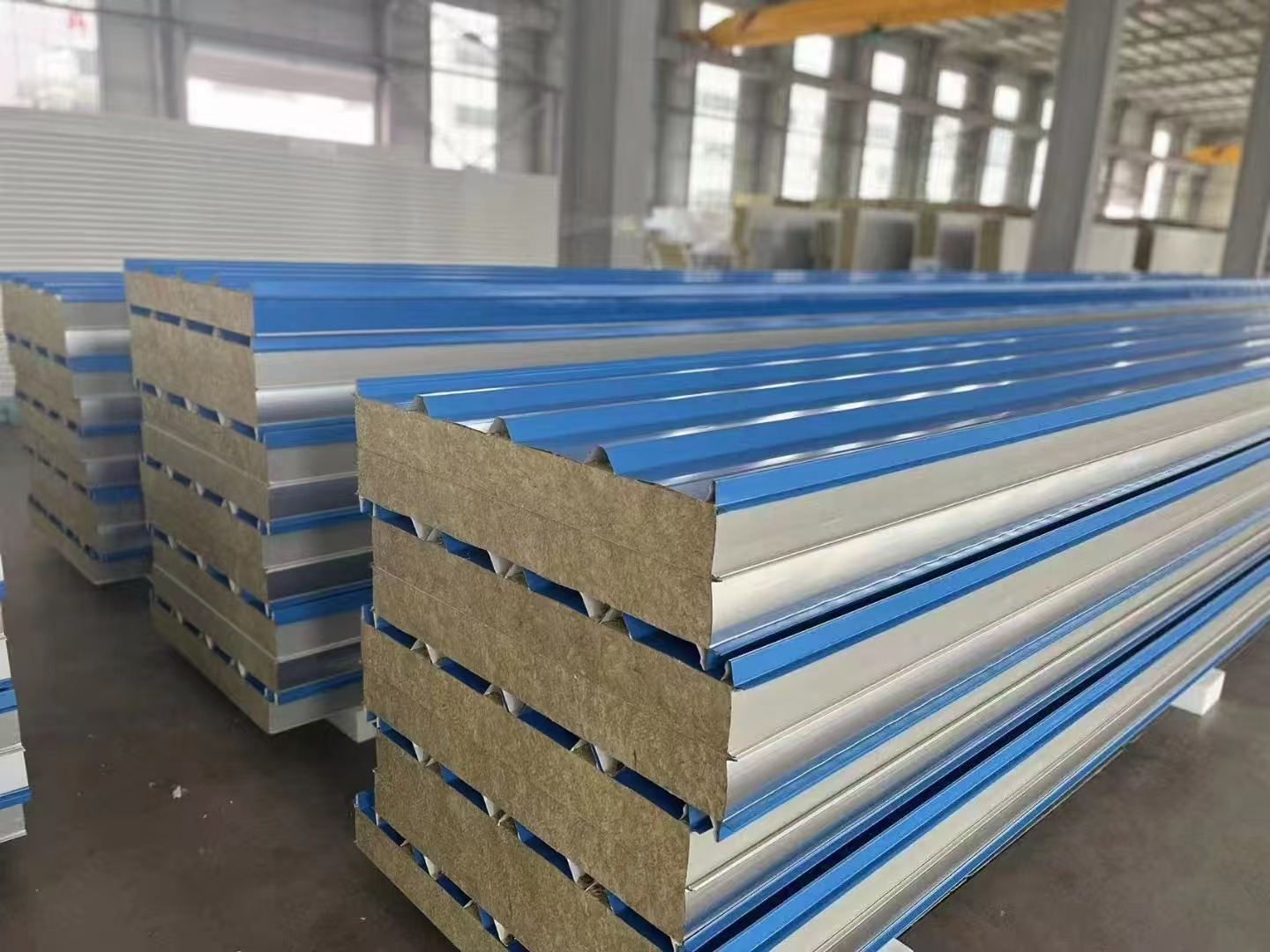

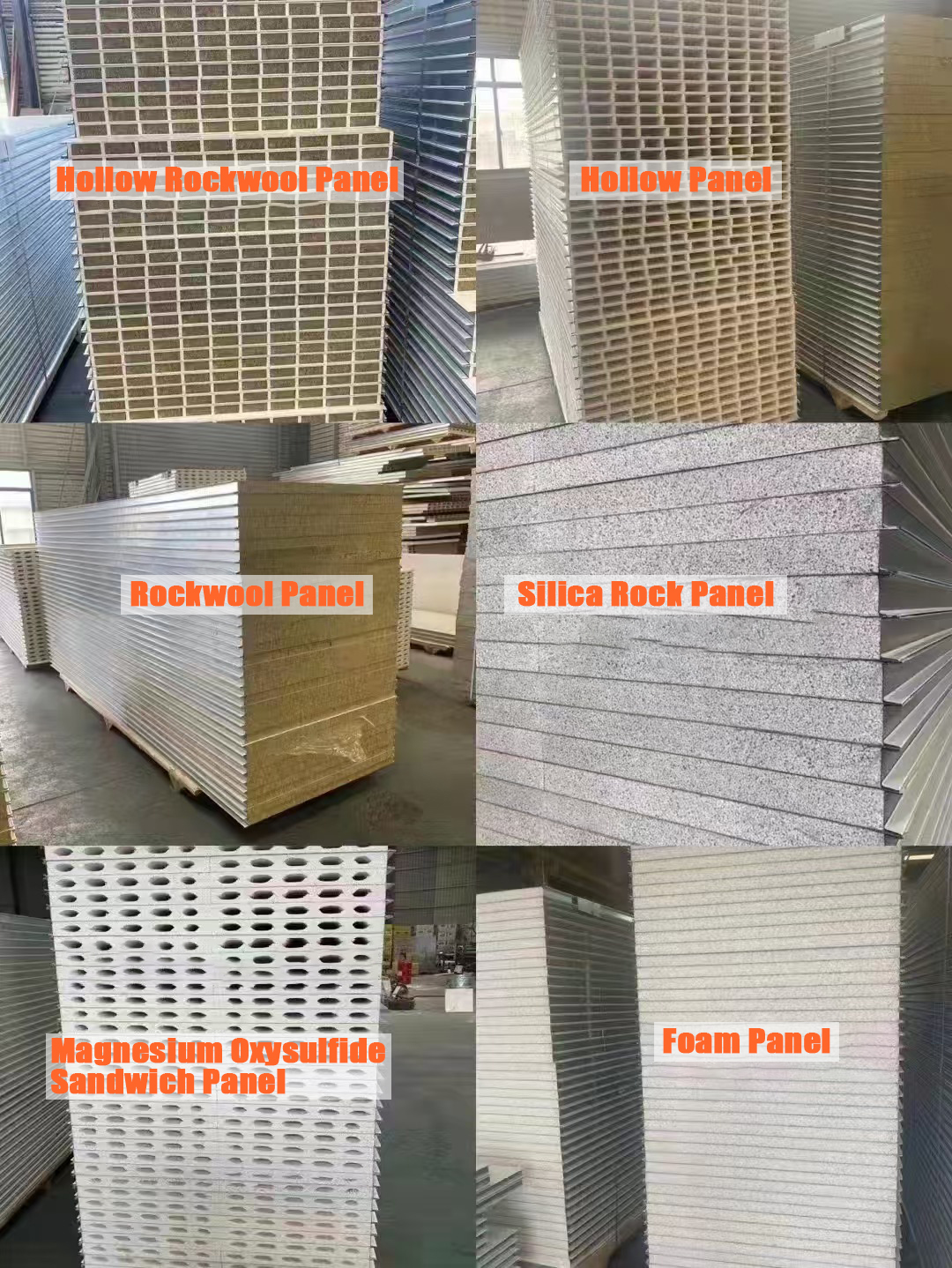

| Color Steel Sandwich Panel different type, Chuanya Roof Tile | Color Steel Magnesium Oxysulfide Sandwich Panel, Chuanya Roof Tile | Blue Corrugated Rockwol Sandwich Panlei, Chuanya Roof Tile |
| Color steel sandwich panel is a new type of building panel, which is composed of two layers of color coated steel plates as the panel, with thermal insulation materials such as polystyrene, polyurethane, phenolic foam, rock wool and other core materials sandwiched in the middle, and is compounded through a continuous molding process. This panel has the characteristics of light weight (only 1/20 to 1/30 of the weight of concrete roof), thermal insulation, fast construction speed, bright color, etc. | Magnesium oxysulfide is used as the core filler. It is a new type of building decoration material made by heating, pressurizing, and compounding color-coated plates or color-coated plates (double layers) with high-strength glue in a progressive molding machine, and then undergoing processes such as trimming, grooving, and feeding. | It uses medium-high density rock wool as the core material, galvanized or color-coated plate as the surface layer (two layers) and high-strength adhesive. It is heated and pressurized by a high-speed continuous automated molding machine, and is made into a new generation of building decoration board after trimming, grooving and cutting. It has the characteristics of thermal insulation and easy installation. |
