Hangzhou Chuanya Building Materials Co., Ltd,
A one-stop factory integrating research and development, design, production, sales, and construction solutions for building materials products.
We are a Roof Tiles Manufacturer that also offers roof building solutions.
With over 15 years of dedication in the field of building materials and roof tiles.
Chuanya Building Materials now has a research and development team composed of dozens of industry veterans and operates a large-scale factory in Haining Jiaxing/ Nanjing Jiangsu/Chengdu Sichuan/ Jingde Jiangxi.
Haining has 2 factories & 8 advanced production lines total for roofing tiles, mainly producing a variety of roof tiles, including Roof Tile / Daylighting Tile / Decorative Tile / All Accessories / Wall Panel / and various series of accessories.
The annual output reaches 10 million square meters, undertaking hundreds of large-scale projects domestically and internationally in factories/ housing construction/ municipal engineering/ ecological gardens, and steel structure projects.
It has developed into an enterprise in the building materials industry in the Zhejiang region of China.
Chuanya continues to innovate, with a diverse range of models and specifications, offering over a hundred product varieties.
Customers can choose from a variety of thicknesses, quality, and colors to meet their high-end customization needs.
The company’s philosophy is to sincerely provide products and satisfactory services for every customer. We offer Custom House Roof Tiles for sale.

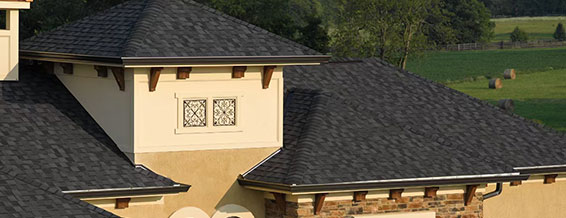

Introduction of Chuanya Asphalt Shingle
Asphalt shingles are a common building material with a durability of 5-20 years. They are usually made of asphalt, glass fiber, mineral powder and other raw materials through a specific process. Asphalt shingles are made of five layers: 1. Colored sand layer 2. Upper adjacent layer of asphalt 3. Glass fiber felt layer 4. Back sand layer. During the production process, the asphalt mixture is first coated on the glass fiber substrate, and then cured by high temperature heating. Asphalt shingles have the characteristics of sound insulation, noise reduction, shock resistance, non-cracking, thermal insulation and easy construction.
Asphalt Shingle
Asphalt shingles consist of five layers: 1. Colored sand layer 2. Upper adjacent layer of asphalt 3. Fiberglass felt layer 4. Back sand layer.
Asphalt shingles with a durability of 5-20 years are a common building material, usually made of raw materials such as asphalt, fiberglass and mineral powder through a specific process.
During its production process, the asphalt mixture is first coated on the fiberglass substrate, and then cured by high-temperature heating. Asphalt shingles have the characteristics of sound insulation and noise reduction, shock resistance and crack resistance, thermal insulation and convenient construction, which can effectively protect buildings from rain erosion and sun exposure.
Asphalt shingles have various specifications, different shapes and colors to choose from, suitable for different architectural styles and needs. Our specifications include single-layer, double-layer, mosaic, Goethe and fish scale types, etc., with good weather resistance and durability, suitable for long-term use on roof coverings.
Asphalt shingles are widely used in various building scenes such as residential and commercial buildings, especially for roof coverings. Its easy installation, economical and stable performance have become a favorite choice for many architects and owners.
Square Meter Calculation
Shippment Reference, If 2.0MM Thickness, against 1000 Type High Six-wave, Proportion
2.1 Per Thickness & Per Meters
20’ container
Total 21.59T, 5,142.8 M, packed as two piles in one container, for reference only
40’ container,
Total 26.49T, 6,309.5 M, packed as two piles in one container, for reference only
from NINGBO to DUBAI, UPDATE WEEKLY BY NINGBO *** SHIPPING LLC
For more port freight rates, please get in touch with us + Container and product deconstruction diagrams, rulers, port-to-port maps
View Item Data
|
Model |
Single-layer/ Double-layer/ Mosaic/ Gothic/ Round/ Squre |
|
Material |
Asphalt/ Fiberglass/ Granules/ Colored Sand |
|
Thickness |
2.6MM |
|
Overall width |
325±3MM |
|
Effective Covering |
3.1 M²/ Packet |
|
Length |
1000±3MM ± |
|
21 Pieces one Packet |
|
|
Weight |
27±0.5 KG/ Packet |
|
Color |
SEA BLUE/ MEDIUM GREY/ DARK RED/ DARK GREY/ DARK GREEN/ BRIGHT RED/ GOLDEN/ BROWNISH-YELLOW/ LIGHT GREY/ BROWN/ BLACK/ BROWN & BLACK |
|
Corrugated |
Single |
|
Km/ Machine |
1,500M/ one Machine per day |
Color Reference
 |
||

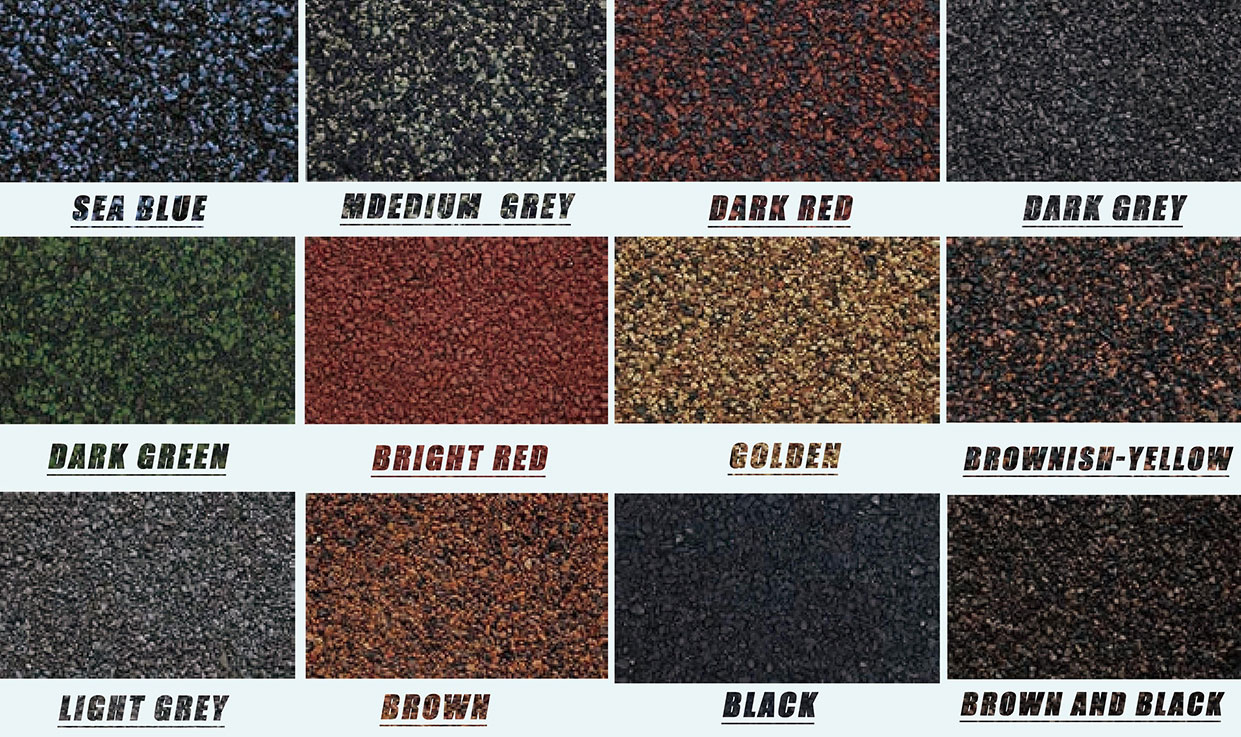

| Color Reference of Asphalt Shingles, CHuanya Roof Tile | ||
 |
 |
 |
 |
 |
 |
Installation View
 |
| Construction Diagram of Mosaic Asphalt Shingles, CHuanya Roof Tile |
Cut off a single tile and use the bottom as the eaves
Apply 50MM wide special asphalt glue to the eaves, and cut off the bottom of the first tile.
Put it on the left side and align it with the eaves. Cut off the excess part with a utility knife.
Click to Check the Whole Details in PDF
 |

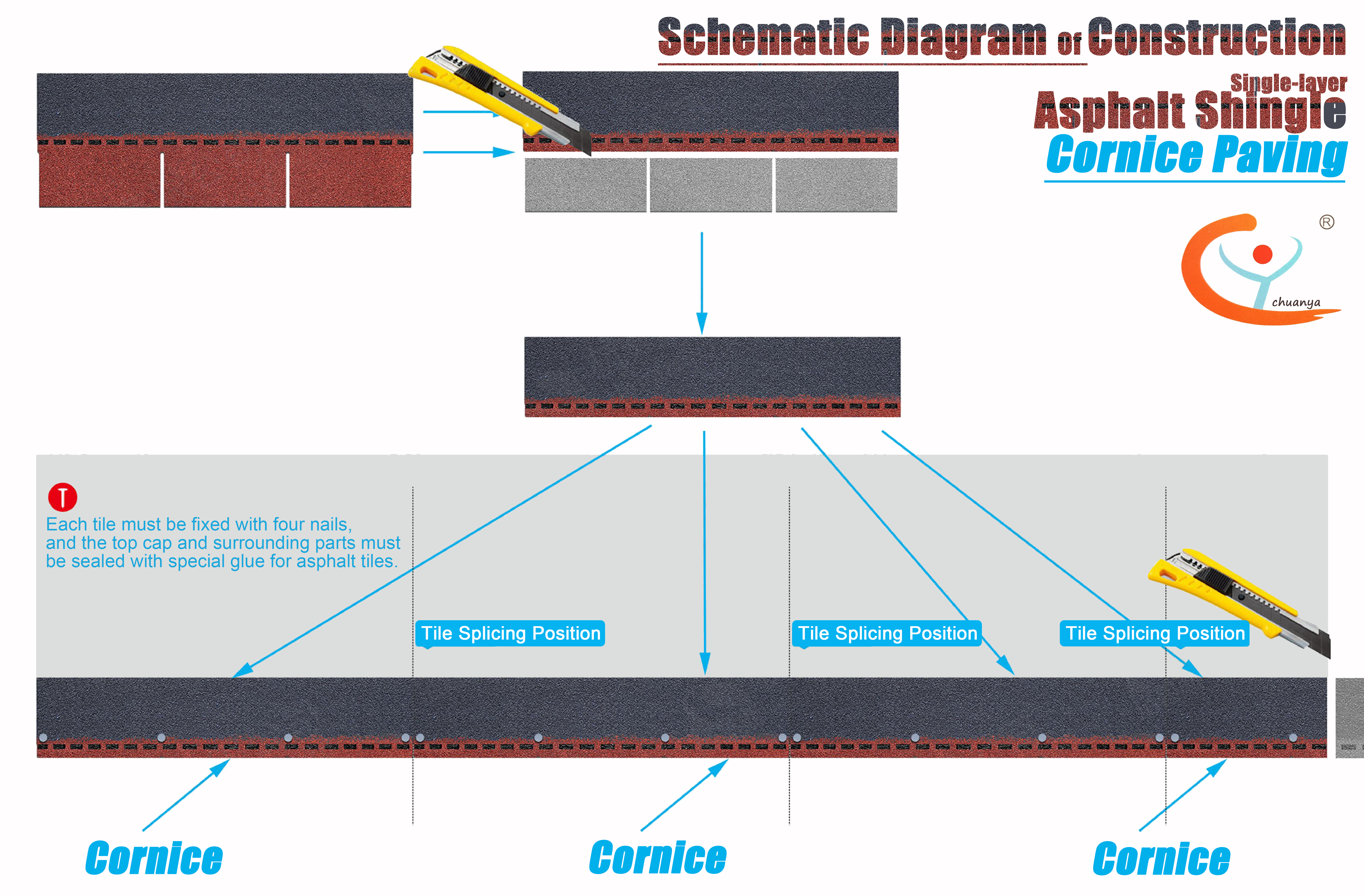

| Schematic Diagram of Single-layer Asphalt Shingles, CHuanya Roof Tile |
Cut off a single tile and use the bottom as the eaves
Apply 50MM wide special asphalt glue to the eaves, and cut off the bottom of the first tile.
Put it on the left side and align it with the eaves. Cut off the excess part with a utility knife.
Click to Check the Whole Details in PDF
Details Displaying
 |
| The Diagram of Chuanya Asphalt Shingles in Production |
The outer part of the fiberglass tile can be divided into a surface layer and a bottom layer.
The colored ceramic particle surface is the surface layer, and the fine sand surface is the bottom layer.
The surface layer is composed of two parts: an exposed surface and a cushion surface layer.
After the exposed surface layer is paved, it forms the exposed layer of the roof.
After the cushion surface layer is paved, it is under the bottom layer of the exposed surface of another tile, that is the bottom layer of the exposed surface of each tile should overlap the cushion surface layer of another tile, and the bottom layer of the cushion surface layer of each tile is in direct contact with the roof, thus forming an overlap between tiles.
 |
 |
 |

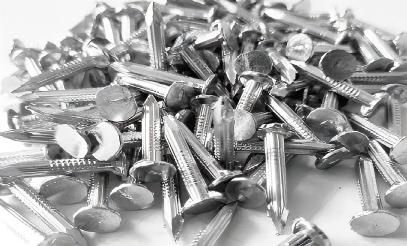

| Asphalt Shingles Special Glue, Chuanya Roof Tile | Asphalt Shingles Special Nails, Chuanya Roof Tile | Asphalt Shingles Glue Gun, Chuanya Roof Tile |
 |
 |
 |

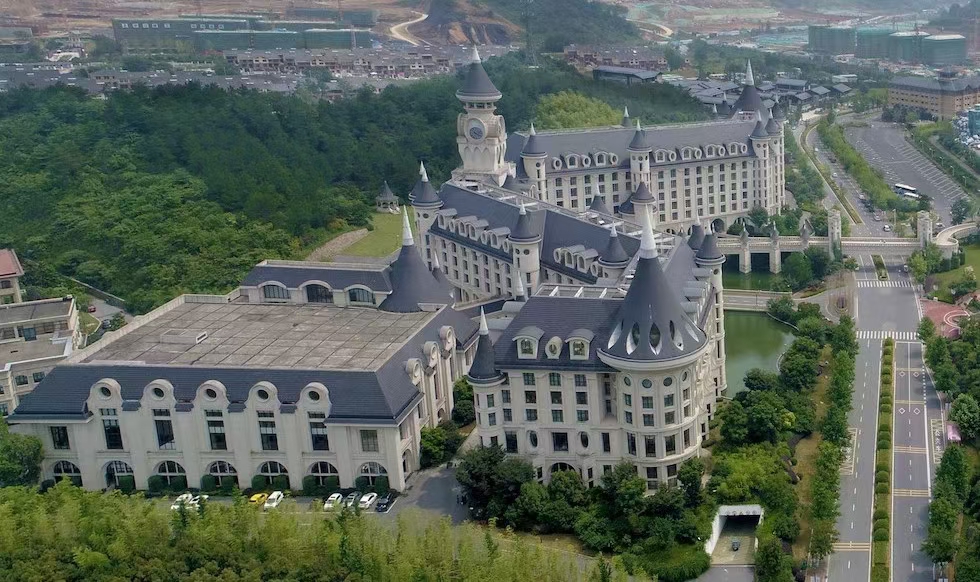

| Asphalt Shingles Used for Private villas, CHuanya Roof Tles | Asphalt Shingles Used for Hotels, CHuanya Roof Tles | Asphalt Shingles Used for European-style castle architecture, CHuanya Roof Tles |
The industry's exclusive 110g fiberglass felt standard, using advanced tire base drying technology
20 years of high-quality modified asphalt exclusive formula high-temperature sintered sand, color stability.
National standard laboratory, perfect quality inspection system
ISO9001 standard certification occupational safety management system
ISO45001 standard certification
 |
 |
 |

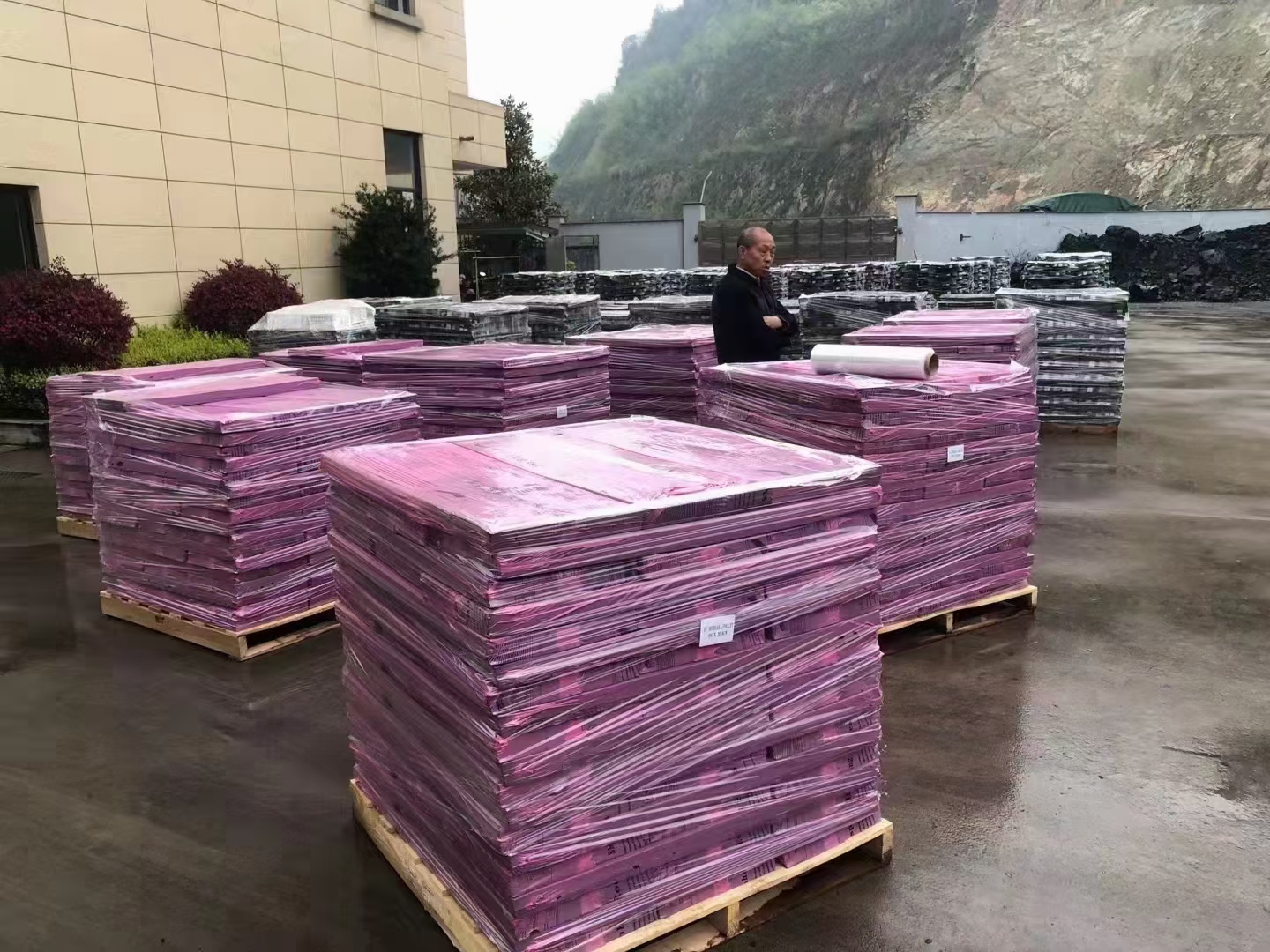

| Asphalt Shingles in Production, Chuanya Roof Tiles | Asphalt Shingles Packed on one Pallet with 19 packets, Chuanya Roof Tiles | Asphalt Shingles Delivery as Bulk Goods, Chuanya Roof Tiles |
| 12 batching tanks, modified asphalt. Separate configuration of backing glue and strip glue, strict control of temperature and mixing time | Usually we pack 19 packets one a pallet, each packet has 21 pieces Asphalt Shingles | If one 20` contaciner, it can be packed with about 4 pallets. It needs to be calculated against real specification, so as reference only. |
-
Installation of The Asphalt Shingle Chuanya Roof Tile
-
Finished Display of The Asphalt Shingle Chuanya Roof Tile
-
Finished Display of The Mosaic Single layer Asphalt Shingle Chuanya Roof Tile
 |
 |
 |
| Stock | Packing | 2,400 squre meter covering on old rooftop of the factory, Chuanya UPVC Roof Sheets |
Our Company
Certificate
Industry knowledge
Get Price
As a professional Asphalt Shingle manufacturer, Chuanya has all your roofing needs covered.
